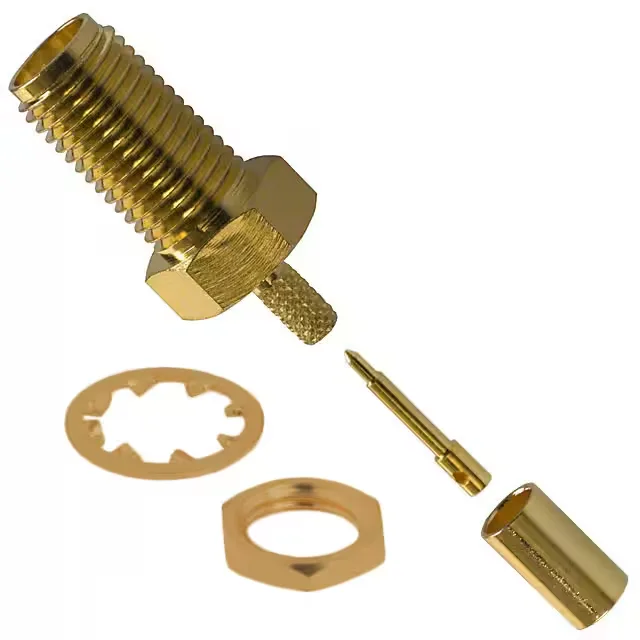

132117RP — Amphenol product photo
Amphenol

Amphenol RF 132117RP RP-SMA Jack, 50 Ohm, 12.4 GHz

MPN132117RP
Active

Amphenol RF RP-SMA jack, male pin, 50 Ohm, 12.4 GHz, crimp shield / solder contact, bulk, includes 5 pcs.

$7.6400Ref. price · indicative, final on quote
132117RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132117RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating375 V
Frequency - max12.4 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The Amphenol RF 132117RP is an RP-SMA jack with a male pin — reverse polarity swaps the gender of the centre contact while keeping the threaded coupling the same. This is not a BNC connector; the threaded fastening and 12.4 GHz ceiling place it in the SMA family, with the reverse-polarity variant used where regulations or system design require a non-standard contact arrangement.

Cable Compatibility and Kit Contents

This connector is designed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables. It is not compatible with RG-58 — the dielectric diameter and centre conductor size differ. The kit includes five pieces: one connector body, one contact, one ferrule, one lockwasher, and one nut.

Rated to 12.4 GHz maximum frequency.

Frequently asked questions

What cable does 132117RP work with?

The 132117RP is designed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables. It is not compatible with RG-58.
