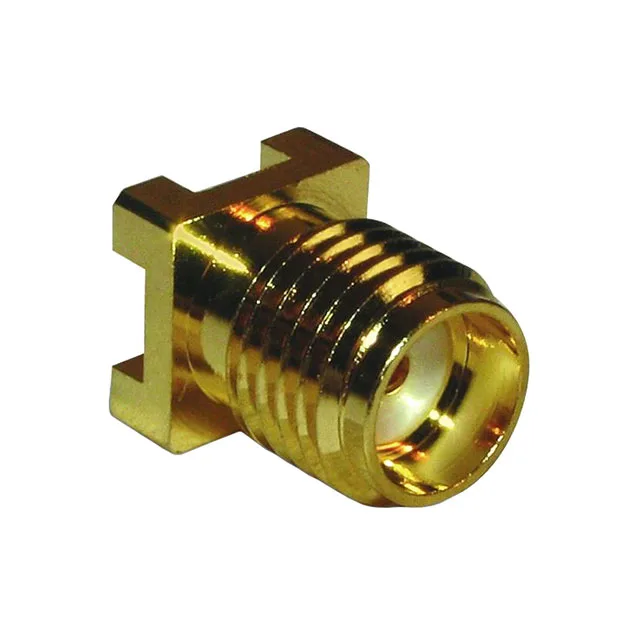

132134-10 — Amphenol product photo
Amphenol

Amphenol 132134-10 SMA Jack, 50 Ohm, 18 GHz, SMT

MPN132134-10
Active

Amphenol SMA jack, female socket, 50 Ohm, 18 GHz, 1 port, SMT solder termination, gold-plated brass body, beryllium copper center contact, 500 mating cycles, -65°C to 165°C.

$7.3400Ref. price · indicative, final on quote
132134-10 datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132134-10 Technical Specifications
ParameterValue
Mounting typeSurface Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Surface-Mount Termination and Board Fit

The 132134-10: This jack terminates via SMT solder pads — the shield and center contact both solder to the board surface, eliminating through-holes and keeping the RF launch plane clean. No special keying or orientation is needed; the threaded coupling provides a secure, repeatable mate for field-service swap-outs.

The bulk package (single unit) suits prototype or low-volume builds; for higher quantities, confirm the packaging preference when requesting a quote.

Frequently asked questions

What is the impedance of 132134-10?

The 132134-10 is a 50 Ohm SMA jack, matching the standard impedance for RF test and telecom systems.
