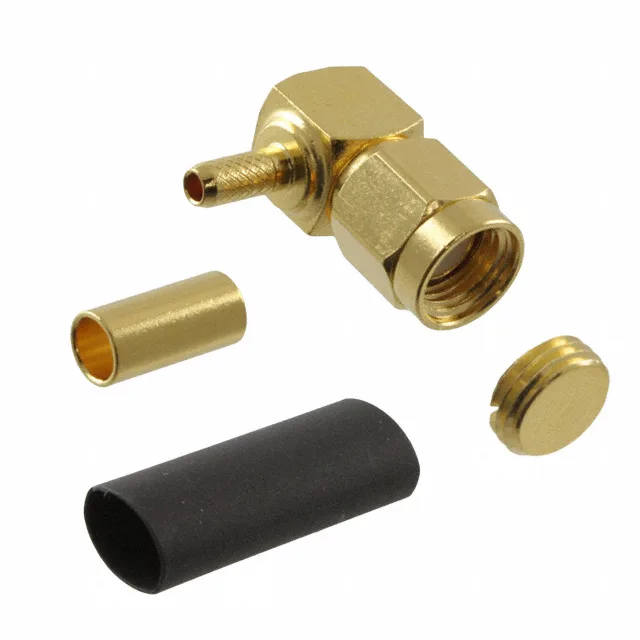

132182RP — Amphenol product photo
Amphenol

Amphenol RF 132182RP RP-SMA Plug, 6 GHz, 50 Ohm

MPN132182RP
Active

Amphenol RF RP-SMA plug, female socket, right-angle, 50 Ohm, 6 GHz, 375 V, solder contact, crimp shield, RG-179/188/316 double braid, weatherproof, -65°C to 165°C, includes 4 pieces.

$13.0700Ref. price · indicative, final on quote
132182RP datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132182RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeThreaded
Voltage rating375 V
Frequency - max6 GHz
Ingress protectionWeatherproof
Cable groupRG-179, 188, 316 Double Braid, M17/152-RD316
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Right-Angle Plug Kit for RG-179/188/316 Coax

Rated to 6 GHz with a 50 Ohm impedance, this plug covers common wireless bands (Wi-Fi, ISM, cellular up to 6 GHz) but rolls off before mmWave. The 375 V voltage rating and PTFE dielectric support moderate-power RF paths where the limiting factor is the cable, not the connector. The shield is crimped via the ferrule; the centre contact is soldered.

Cable Fit and Termination Checklist

Compatible with RG-179 and RG-316 double-braid cables (M17/152-RD316). The double-braid variant of RG-316 requires the ferrule to capture both braid layers — the included ferrule is sized for that.

Frequently asked questions

What cable types are compatible with the 132182RP plug?

The 132182RP is designed for RG-179, RG-188, and RG-316 double-braid cables, including M17/152-RD316. The included ferrule and heat shrink are sized for these coax types.

Does the 132182RP come as a complete assembly with hardware?

Yes, the kit includes 4 pieces: the connector body, an end cap, a crimp ferrule, and a heat-shrink tube. You supply the cable and solder.

Is the 132182RP compatible with RG-316 double braid cable?

Yes, RG-316 double braid is explicitly listed in the cable group. The ferrule captures both braid layers for a proper shield termination.
