Amphenol 132203-16 SMA Jack, 50 Ohm, 12.4 GHz, Bulkhead

MPN132203-16
Active

Amphenol SMA jack, female socket, 50 Ohm, 12.4 GHz max, panel mount through-hole right angle, gold-plated brass body, includes lockwasher and nut.

$13.1100Ref. price · indicative, final on quote
132203-16 datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132203-16 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max12.4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What Comes in the Box and How It Mounts

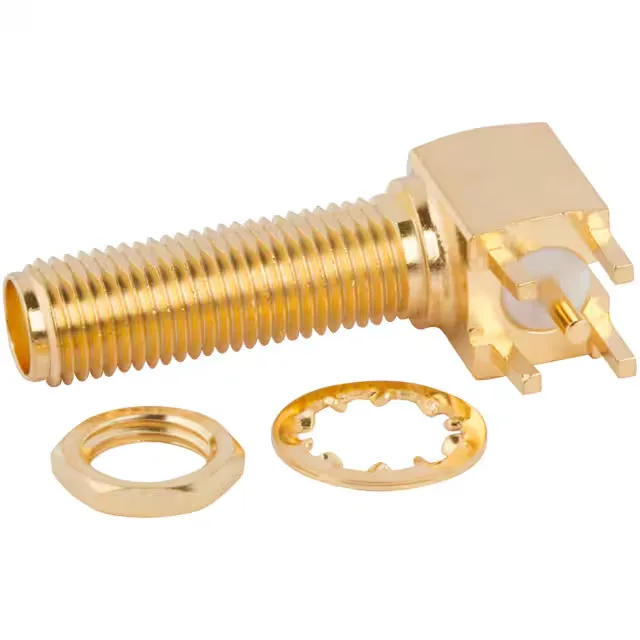

The 132203-16: The lockwasher and nut are the bulkhead mounting hardware — you do not need to order them separately. The connector mounts through a panel hole and is secured from the front side with the nut; the right-angle through-hole solder tails then go into the PCB. The shield termination is solder, so the ground connection is made at the board, not through a separate crimp ferrule.

The 12.4 GHz max frequency covers L, S, and C bands, plus most of X-band. For applications under 12.4 GHz, this connector is a clean match.

Frequently asked questions

What is the impedance of the 132203-16?

The 132203-16 is a 50 Ohm SMA jack, matched to standard 50 Ohm cable and PCB trace impedance.
