Amphenol 132203RP

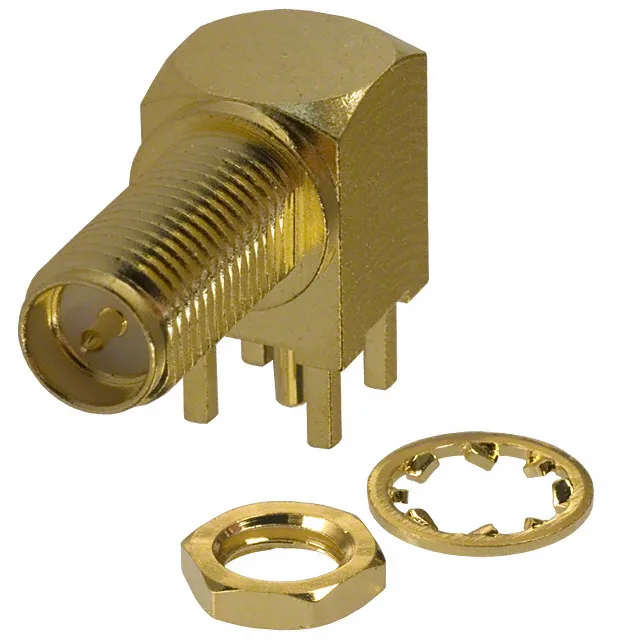

132203RP Amphenol RF RP-SMA Jack, 50 Ohm, 12.4 GHz, Bulkhead

MPN 132203RP
Active

Amphenol RF RP-SMA jack, male pin, 50 Ohm, DC to 12.4 GHz, 1 port, bulkhead front-side nut mount, solder termination, gold body, includes lockwasher and nut, bulk pack.

$13.8000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

132203RP key specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating375 V
Frequency - max12.4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

All specifications

132203RP additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Jack, Male Pin — 50 Ohm, DC to 12.4 GHz

The Amphenol RF 132203RP is a reverse-polarity SMA (RP-SMA) jack with a male center pin, designed for bulkhead mounting with a front-side nut. It delivers 50 Ohm impedance across a DC to 12.4 GHz range, with a PTFE dielectric supporting the full band.
