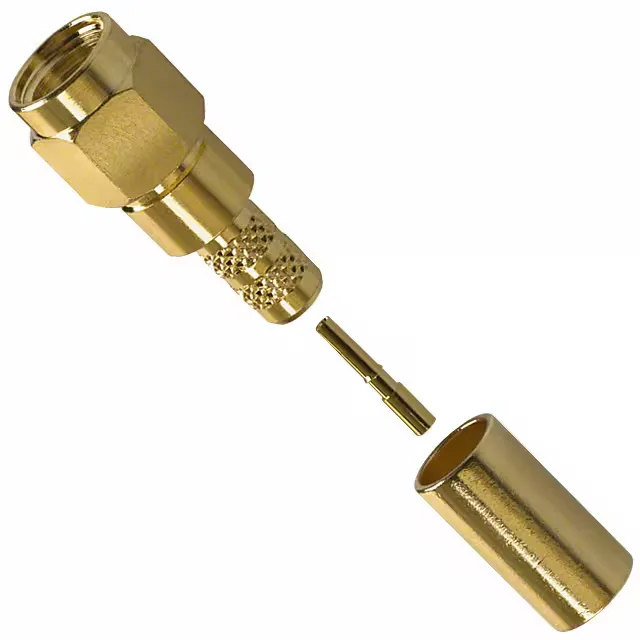

132234RP — Amphenol product photo
Amphenol

Amphenol 132234RP RP-SMA Plug, 12.4 GHz, 50 Ohm, Gold Body

MPN132234RP
Active

Amphenol RP-SMA plug, female socket, 50 Ohm, 12.4 GHz, gold-plated brass body, crimp shield, solder contact, free-hanging inline, 500 mating cycles, bulk pack includes connector + contact + ferrule.

$8.2400Ref. price · indicative, final on quote
132234RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132234RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeThreaded
Voltage rating375 V
Frequency - max12.4 GHz
Cable groupBelden 7807A, LMR-200
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Plug for LMR-200 and Belden 7807A — 12.4 GHz, 50 Ohm

The Amphenol 132234RP is a reverse-polarity SMA (RP-SMA) plug with a female socket centre contact, designed for free-hanging inline termination. It handles DC to 12.4 GHz at 50 Ohm nominal impedance, making it a fit for Wi-Fi, ISM-band, and general-purpose RF links that use the RP-SMA interface.

Cable Compatibility — Belden 7807A and LMR-200

This connector is built for Belden 7807A and LMR-200 cable groups — two common low-loss 50 Ohm coax types used in outdoor antenna feeds and short jumper runs. If you are terminating LMR-200, the crimp tool and die set for that cable diameter are what you need; the connector itself is ready for the cable jacket and dielectric dimensions of those specific coax lines.

Frequently asked questions

Is the 132234RP compatible with LMR-200 cable?

Yes, the 132234RP is listed for LMR-200 cable groups. The kit includes the connector, contact, and ferrule needed to terminate that coax.

What is the body plating on the 132234RP?

The body finish is gold over brass, with a gold-plated centre contact on beryllium copper.
