Amphenol RP-SMA jack, male pin, 50 Ohm, 12 GHz, crimp termination, RG-178B/196A, gold body, threaded, weatherproof, 500 cycles, -65°C to 165°C.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 375 V |
| Frequency - max | 12 GHz |
| IP rating | Weatherproof |
| Cable group | RG-178B, 196A |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Parameter | Value |
|---|---|
| Package | Bulk |

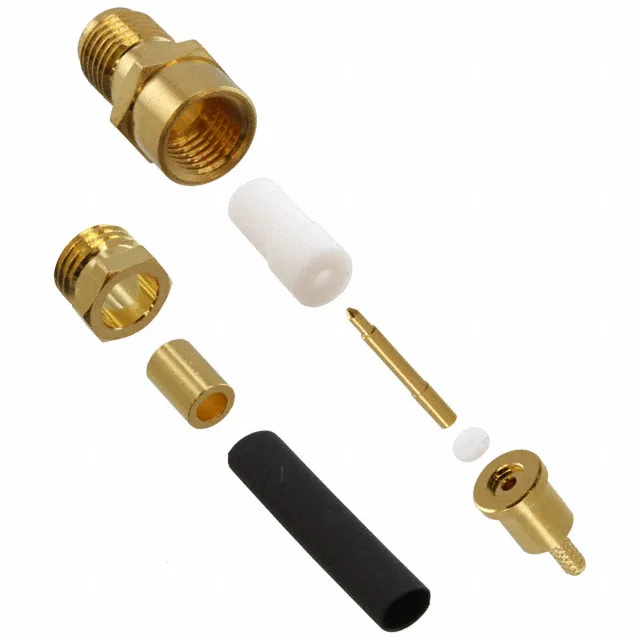

| Includes | 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 2 Insulators, 1 Nut, 1 Rear Body |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The Amphenol 132279RP is a reverse-polarity SMA (RP-SMA) jack with a male centre pin, built for 50 Ohm RF systems up to 12 GHz.
Both the shield and centre contact terminate via crimp. The kit is specced for RG-178B and 196A, both 50 Ohm coax.
Gold-over-brass plating on the centre contact and the brass body with gold finish. The mating cycle rating is 500 mates.
50 Ohms — standard for RF systems, matching RG-178 and RG-196 coax.
Yes, the kit is designed for RG-178B and RG-196A cable.
