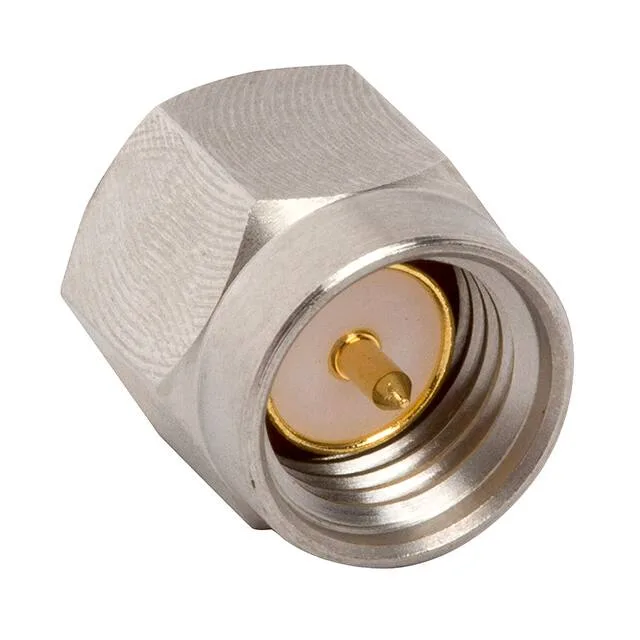

132294-11 — Amphenol product photo
Amphenol

Amphenol 132294-11 SMA Plug, 50 Ohm, 18 GHz, RG-405

MPN132294-11
Active

Amphenol SMA plug, male pin, 50 Ohm, DC to 18 GHz, for RG-405 (.085" semi-rigid) cable, solder termination, gold-plated beryllium copper center contact, threaded coupling, free-hanging.

$12.8200Ref. price · indicative, final on quote
132294-11 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132294-11 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max18 GHz
Cable groupRG-405 (.085\", .086\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialBrass; Stainless Steel
Housing colorGold, Silver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes2 pcs - 1 Connector, 1 Insulator
Impedance50Ohm
Body finishGold; Passivated
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Plug for RG-405 Semi-Rigid Coax

The Amphenol 132294-11 is an SMA plug, male pin, designed specifically for RG-405 (.085".086" semi-rigid) cable. It terminates with a solder-on center contact and a solder shield termination — the standard field-reliable method for semi-rigid coax. The threaded coupling gives a vibration-resistant mate that holds its torque through thermal cycling. Rated DC to 18 GHz at 50 Ohm impedance, this plug covers the full SMA band without a frequency roll-off compromise.

Cable Fit and What It Means

This plug is built for RG-405 semi-rigid cable — the.085" or.086" outer diameter that RF engineers use for phase-stable jumpers and internal chassis wiring. If your assembly needs a panel feedthrough, the 132203-16 SMA jack is the matching bulkhead half with the same 50 Ohm, 18 GHz rating.

Frequently asked questions

What type of connector is 132294-11?

The 132294-11 is an SMA plug, male pin, 50 Ohm, rated DC to 18 GHz, designed for RG-405 semi-rigid cable with solder termination.

Does 132294-11 fit RG-405 cable?

Yes, it is specifically listed for RG-405 (.085".086" semi-rigid) cable groups. The center contact and shield both terminate with solder.
