RP-SMA Bulkhead Jack for 1.13mm Coax — Sealed, Kitted

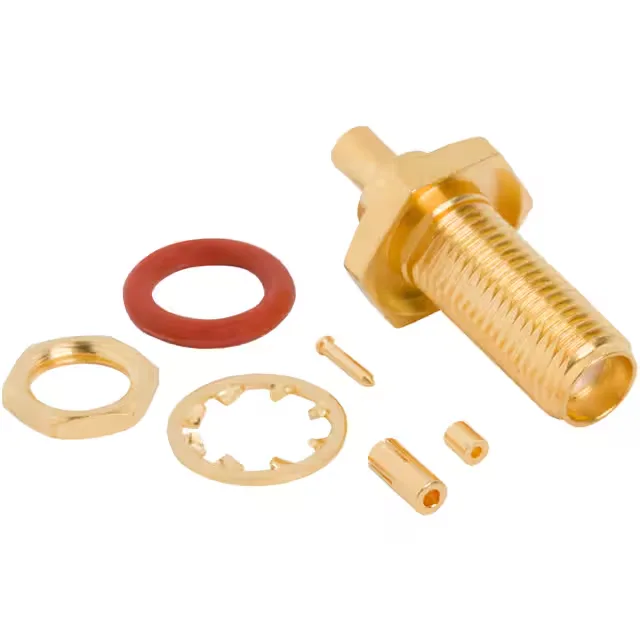

The 132422RP-10: It comes as a complete 7-piece kit: the connector body, crimp ferrule, PTFE insulator, centre contact, lockwasher, hex nut, and a sleeve — everything needed for one cable termination. This is the variant for 1.13 mm coaxial cable, with a solder centre contact and a crimp shield termination.
What the 6 GHz and IP67 Ratings Mean for a Field Termination
The 6 GHz bandwidth covers the full 2.4/5 GHz Wi-Fi bands plus most ISM and sub-6 GHz cellular bands — this is not a generic SMA that might roll off above 3 GHz. The IP67 seal means the O-ring on the bulkhead face keeps water and dust out when the nut is hand-tight plus a quarter turn; a half-turn loose and that seal is gone, so torque it properly. The 500-cycle rating on the gold-plated beryllium copper contact is solid for antenna ports that get swapped during field upgrades — the contact spring won't take a set after a few mates.
Kit Contents and Cable Fit
The 132422RP-10 is specifically designed for 1.13 mm coaxial cable — the crimp ferrule and centre contact dimensions match that OD. The kit includes the lockwasher and hex nut for the bulkhead mount, plus the PTFE insulator and sleeve. No separate hardware order needed; one line item covers the full termination.
