Amphenol 142176-75

Amphenol 142176-75 SMB Plug, 75 Ohm, RG-179, Right Angle

MPN 142176-75
Active

Amphenol SMB, Mini plug, 142176-75, 75 Ohm, RG-179 Double Braid, Right Angle, Free Hanging, Snap-On, Gold Body, 500 Mating Cycles, Bulk.

$8.1093 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

142176-75 key specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeSnap-On
Cable groupRG-179 Double Braid
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Insulator
Impedance75Ohm

All specifications

142176-75 additional specifications
ParameterValue
Body finishGold
Mating cycles500
Insertion loss0.6dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm SMB Plug for RG-179 — Right-Angle Field Termination Kit

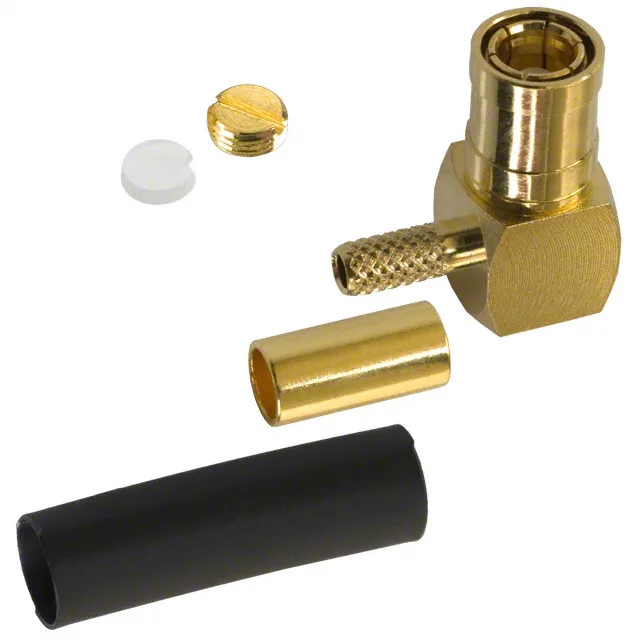

The Amphenol 142176-75 is a 75 Ohm SMB plug, built as a field-termination kit for RG-179 double braid coaxial cable. It ships as five pieces: the connector body, an end cap, a ferrule, a length of heat shrink, and an insulator — everything needed to complete one cable end in a single order line. The right-angle, free-hanging body routes the cable exit perpendicular to the mating axis, saving space in tight enclosures where a straight plug would force a bend radius that strains the braid.

Why 75 Ohm Matters for This Connector

The insertion loss is rated at 0.6 dB, a figure that holds across the SMB frequency band when terminated to the specified cable group.

The centre contact is solder-terminated; the shield is crimped via the included ferrule. The heat shrink covers the crimp area for strain relief and environmental sealing. The kit is designed specifically for RG-179 double braid — the ferrule diameter and insulator length match the cable's dielectric and braid lay, so no adapter or substitute ferrule is needed. The free-hanging mount means the connector is not panel-mounted — it terminates the cable end and mates with a bulkhead jack or another in-line receptacle. The right-angle body keeps the cable running parallel to the mating face, which is useful when routing coax along a chassis wall or inside a swing-out rack.

MPN
142176-75
