Amphenol 142194-75

Amphenol RF 142194-75 SMB Mini Plug, 75 Ohm, RG-179/187

MPN 142194-75
Active

Amphenol RF SMB Mini plug, 75 Ohm, for RG-179/187 cable, right-angle, snap-on, gold body, 500 mating cycles, includes end cap/ferrule/heat shrink.

$9.8300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

142194-75 key specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeSnap-On
Cable groupRG-179, 187
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Impedance75Ohm

All specifications

142194-75 additional specifications
ParameterValue
Body finishGold
Mating cycles500
Insertion loss0.6dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMB Mini Plug for 75 Ohm Coax — What It Actually Is

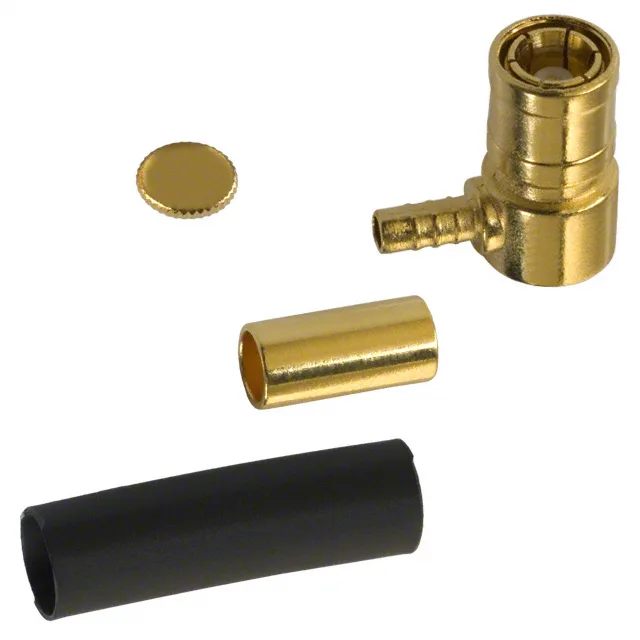

The Amphenol RF 142194-75 is an SMB Mini plug, not a BNC — a common mix-up since both use a bayonet-style snap-on coupling but the SMB body is roughly half the diameter. It's a 75 Ohm, right-angle, female-socket plug designed for field termination onto RG-179 or RG-187 coaxial cable. The kit includes four pieces: the connector body, an end cap, a crimp ferrule, and a heat-shrink tube, so you're not hunting for loose parts at the bench.

Cable Prep and Termination Sequence

This plug terminates with a solder contact and a crimp shield. The centre conductor solders into the beryllium copper pin (gold-plated), and the braid gets captured under the crimp ferrule. The heat shrink then seals the cable entry — important for keeping moisture out of the dielectric on outdoor or high-humidity runs.

Electrical and Mechanical Ratings

Insertion loss runs 0.6 dB through the mated pair, which is typical for an SMB at these frequencies.

Construction and Plating

Dielectric is PTFE (Teflon), which keeps the 75 Ohm impedance stable and handles the full temperature range without creeping.
