TE Connectivity 142222-75 SMB Plug, 75 Ohm, 500 Cycles

MPN142222-75
Active

TE Connectivity SMB, Mini plug, 142222-75, 75 Ohm, female socket, snap-on, free-hanging, solder contact, crimp shield, gold body, 500 mating cycles.

$9.1500Ref. price · indicative, final on quote
142222-75 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

142222-75 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeSnap-On
Cable groupAT&T 735A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishGold
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm SMB Plug for AT&T 735A Cable

The 142222-75: The 500-cycle mating rating suits field-service and test-point duty where repeated connect-disconnect is expected.

Kit Contents and Termination Sequence

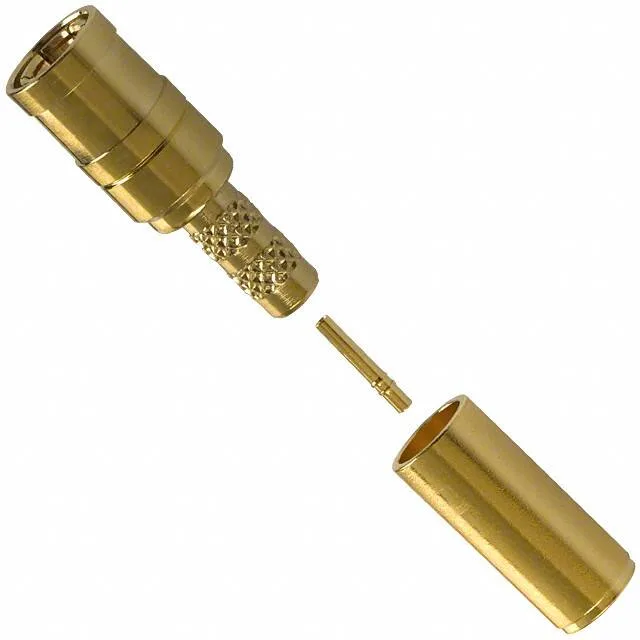

This is a 3-piece kit: the SMB plug body, one beryllium copper center contact with gold plating, and one crimp ferrule. The center contact solders to the signal wire; the shield termination is crimped through the ferrule over the braid. The gold body finish on a brass shell resists corrosion in humid or outdoor enclosures.

Temperature Range and Insertion Loss

Insertion loss is 0.3 dB — a clean pass-through for 75 Ohm video or data signals where signal budget is tight.

Frequently asked questions

What is the part number 142222-75 used for?

To verify application fit for specific cable types and system requirements.

Where can I buy 142222-75?

To source the part from authorized distributors with stock and competitive pricing.

Is 142222-75 available in stock?

To determine lead time and avoid production delays.

What is the impedance of 142222-75?

To ensure matching with system impedance for signal integrity.

Does 142222-75 include the contact and ferrule?

To confirm it is a complete assembly kit for immediate use.

What is the replacement for 142222-75?

To find an alternative if the part is unavailable or obsolete.
