Amphenol 142335-75

Amphenol RF 142335-75 SMB Mini Plug, 75 Ohm, RG-59

MPN 142335-75
Active

Amphenol RF SMB, Mini, 142335-75, Plug, Female Socket, 75Ohm, Snap-On, Free Hanging, Solder Contact Termination, Crimp Shield Termination, Gold Body Finish, RG-59 Plenum, 20AWG, 500 Mating Cycles, -65°C~165°C, Bulk.

$12.5139 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

142335-75 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeSnap-On
Cable groupRG-59 Plenum, 20AWG
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm

All specifications

142335-75 additional specifications
ParameterValue
Body finishGold
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm SMB Mini Plug for RG-59 Plenum Runs

It's a snap-on, free-hanging (in-line) connector with a female socket center contact. The 75 Ohm impedance and RG-59 cable group target it for video surveillance, broadband, and in-building distribution where plenum-rated cable is required by code.

What the 75 Ohm Rating and Cable Match Mean

75 Ohm is the standard impedance for composite video, CCTV, and broadband RF — not the 50 Ohm used in cellular or Wi-Fi. The 142335-75 is explicitly listed for RG-59 plenum cable, 20 AWG center conductor. The plenum rating means the jacket material meets fire code for air-handling spaces (above drop ceilings, in ventilation ducts).

Kit Contents and Termination

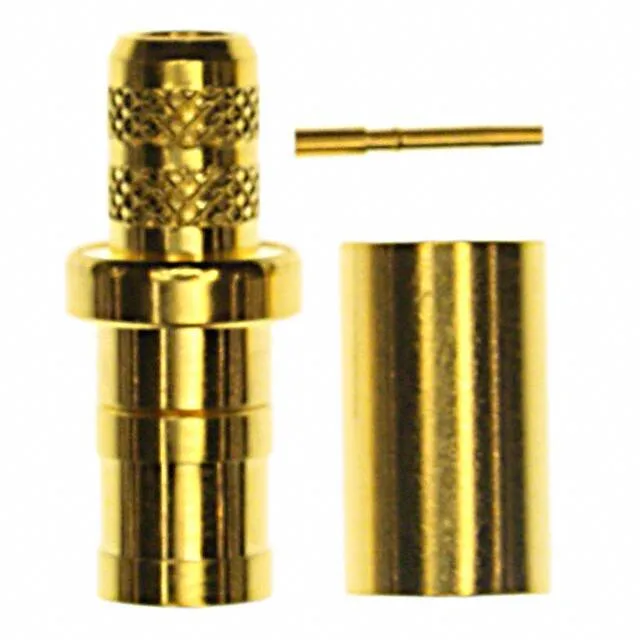

The package includes three pieces: the SMB plug body, one center contact, and one ferrule. The snap-on fastening is standard for SMB — push to mate, pull to unmate — rated for 500 cycles. The gold plating on both the body and center contact supports that cycle life without corrosion in indoor or conditioned environments.

Insertion Loss and Signal Path

Insertion loss is listed at 0.3 dB. For a 75 Ohm video path, that's a clean number — it won't visibly degrade a composite or HD-SDI signal over a short cable run. The single-port, plug configuration mates with any standard SMB jack (bulkhead or PCB-mount) of the same impedance. The snap-on coupling gives a quick connect/disconnect for field-service or test points where you don't want to unscrew a threaded connector.
