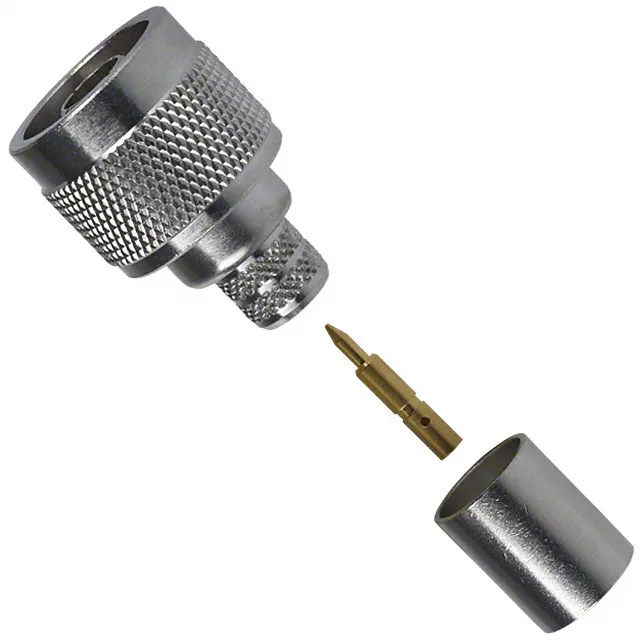

N-Type Plug for LMR-400 and Belden 9913 — 50 Ohm, 11 GHz
The connector is explicitly listed for Belden 9913, 9914, and LMR-400 cable groups — a common fit question answered directly by the cable group spec. The threaded fastening and weatherproof ingress protection confirm this is built for outdoor or high-vibration environments where a secure, sealed mate is required.
Cable Fit and Termination — Crimp for LMR-400
No special tools beyond the correct crimp die set for LMR-400 or Belden 9913 are required — the same tooling used for other N-type crimp connectors on these cables works here. The shield termination is crimped over the ferrule, which compresses onto the cable jacket and braid for a weatherproof seal. The cable group spec lists Belden 9913, 9914, and LMR-400 — all 50 Ohm cables. The connector's center pin and ferrule are sized for these cables.
The 1500 V voltage rating is unusually high for an N-type connector — most standard N plugs are rated 500 V to 1000 V. This headroom matters for applications where transient spikes or high-power RF carriers are present, such as broadcast transmitters or high-voltage test setups. The weatherproof ingress protection means the mated pair seals against rain and dust — not a full IP67 submersion rating, but adequate for outdoor antenna mounts and equipment shelters.
