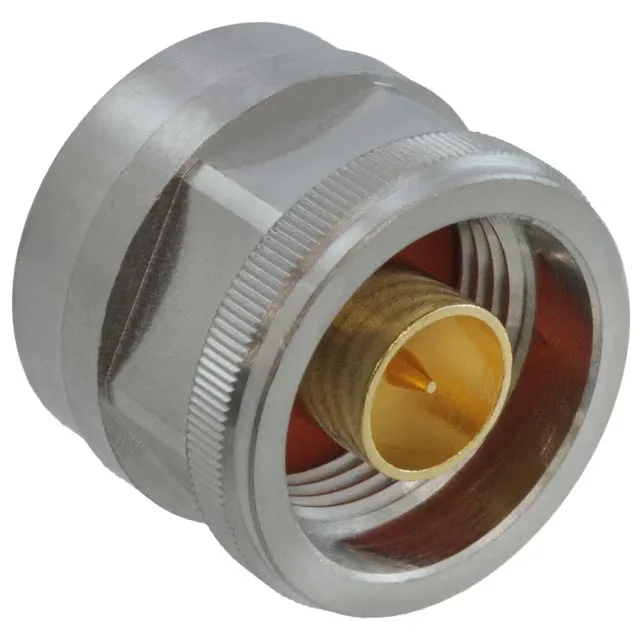

Amphenol RF N-Type plug, male pin, 50 Ohm, 11 GHz, for RG-402.141" semi-rigid cable, solder termination, gold-plated brass body, weatherproof, 1 port, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 1500 V |
| Frequency - max | 11 GHz |
| IP rating | Weatherproof |
| Cable group | RG-402 (.141\" Semi Rigid) |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.15dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Rated weatherproof (IP-grade ingress protection) and secured with a threaded fastening nut — this plug holds its mate under vibration and outdoor exposure without an O-ring seal at the interface face. The 1500 V rating and insertion loss of 0.15 dB at 11 GHz make it a clean signal path for base-station antenna feeds or outdoor test fixtures.
Yes, the 172133-11 is a 50 Ohm N-type plug. That impedance is consistent across the entire signal path from the centre contact through the PTFE dielectric to the shield termination.
It is designed for RG-402 (.141" semi-rigid) cable only. The centre contact and shield are solder-terminated; the PTFE dielectric matches the cable's dielectric for a controlled impedance transition.
