Amphenol 172224-13

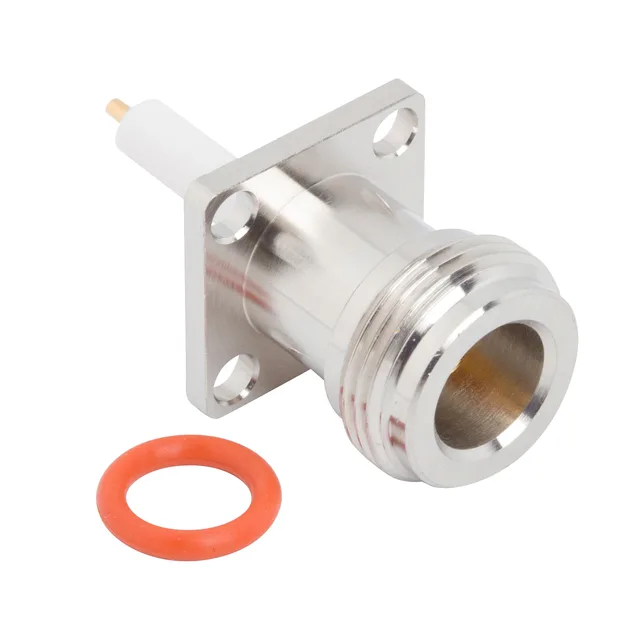

Amphenol 172224-13 N Type Receptacle, 50 Ohm, 11 GHz

MPN 172224-13
Active

Amphenol N Type, 172224-13, receptacle female socket, 50 Ohm, 11 GHz, 1500 V, panel mount flange, solder termination, gold center contact, bulk.

$12.8624 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

172224-13 key specifications
ParameterValue
MountingPanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
IP ratingWeatherproof
Mounting featureFlange
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze

All specifications

172224-13 additional specifications
ParameterValue
PackageBulk
FeaturesExtended Insulation
Includes2 pcs - 1 Connector, 1 Gasket
Impedance50Ohm
Body finishWhite Bronze
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

N Type Receptacle, 50 Ohm, 11 GHz — Panel Mount with Flange

The 172224-13: It mounts through a panel flange with threaded fastening — the flange takes the torque during mating so the RF interface stays aligned. Rated at 1500 V and weatherproof, this connector handles outdoor antenna feeds and base station equipment where the signal path needs to stay clean through repeated mate cycles.

Insertion loss is 0.15 dB across the band — that's the total loss through the mated pair, not per unit length. The 11 GHz ceiling is the practical limit for the N interface — above that the air-dielectric transition starts to degrade.

Mounting and Environmental Fit

Panel mount with a flange — four clearance holes for #6 or M3.5 screws. The weatherproof rating means the interface seal holds up to rain and condensation but it is not submersible; the gasket (included) sits between the flange and the panel face. Shield termination is solder — the braid is soldered to the body, not crimped, so the ground path stays low-inductance through the life of the install.
