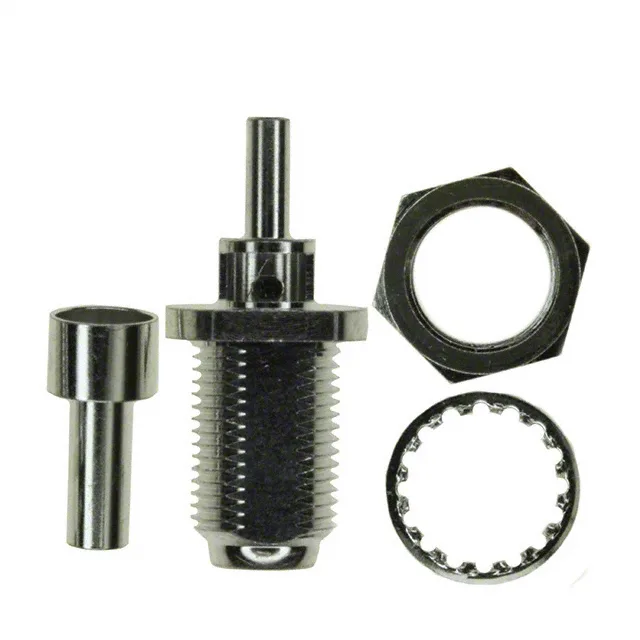

222114-10 — Amphenol product photo
Amphenol

222114-10 Amphenol RF F-Type Jack, 75 Ohm, 2 GHz, Bulkhead

MPN222114-10
Active

Amphenol RF F-Type jack, 222114-10, 75 Ohm, 2 GHz max, panel mount bulkhead, crimp shield termination, solder contact, tin body finish, RG-179 cable group.

$5.8300Ref. price · indicative, final on quote
222114-10 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

222114-10 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Operating temperature-40°C~60°C
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishTin
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingTin

Product details

75-Ohm F-Type Jack for RG-179 Coax

The 222114-10: It terminates to RG-179, 179A, 179B, 187, 187A, Belden 9221, or M17/94-RG179 cable groups via a crimp shield and solder contact. The threaded coupling ensures a vibration-resistant mate, and the tin-plated brass body with a polypropylene dielectric keeps the impedance stable up to 2 GHz.

Why 75 Ohm Matters for This Connector

This jack is 75 Ohm, not the more common 50 Ohm found on N-type or SMA connectors. The 75-Ohm impedance is standard for video, broadcast, and CATV distribution.

Installation and Field Termination

Termination is crimp for the shield and solder for the centre contact. The cable preparation follows the standard RG-179 strip dimensions: expose the centre conductor for solder, trim the braid for the ferrule, and crimp the ferrule over the jacket and braid. The threaded bulkhead mount with the front-side nut secures the jack to the panel before mating.

Frequently asked questions

What cable types are compatible with 222114-10?

The 222114-10 accepts RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179 cable groups.
