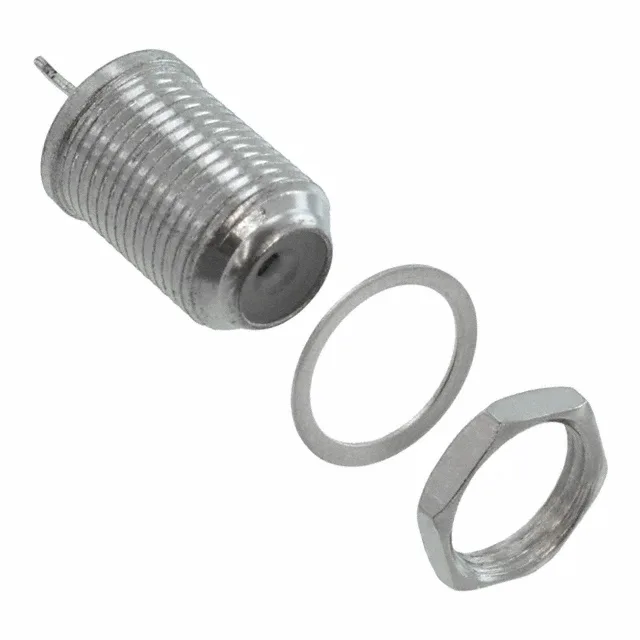

Amphenol RF F-Type Jack, Female Socket, 75 Ohm, 2 GHz, 1 Port, Bulkhead - Front Side Nut Mount, Solder Tab Termination, Gold Center Contact, Nickel Body, Includes Lockwasher and Nut, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount; Surface Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Frequency - max | 2 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C~60°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polypropylene (PP) |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Parameter | Value |
|---|---|
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Tab |
| Center contact plating | Gold |
The Amphenol 222150-10 is a 75 Ohm F-type jack, female socket, designed for bulkhead front-side nut mounting in CATV, satellite, and broadband equipment. The body is nickel-plated brass, and the dielectric is polypropylene.
Submit a request for quote to confirm current availability and pricing — no stock-holding or lead-time claim is made on this listing.
The 222150-10 is a 75 Ohm F-type jack, designed for 75 Ohm cable systems like CATV and satellite.
