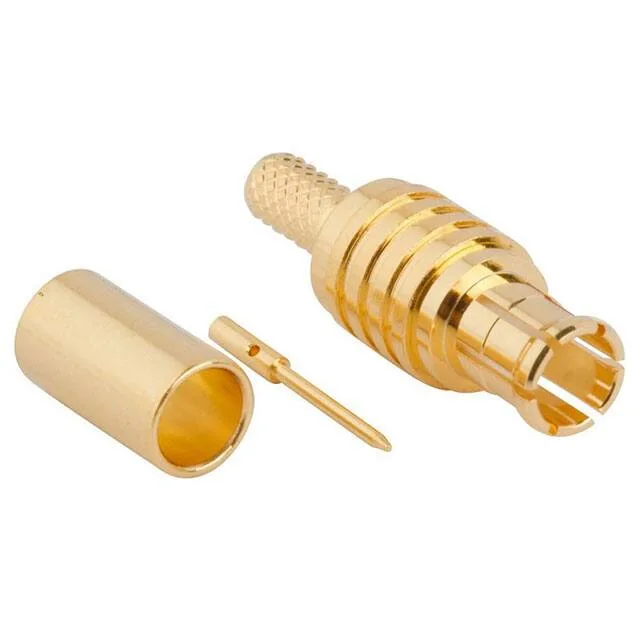

252103-75 — Amphenol product photo
Amphenol

Amphenol RF 252103-75 MCX Plug, 75 Ohm, 6 GHz, Crimp

MPN252103-75
Active

Amphenol RF MCX plug, male pin, 75 Ohm, 6 GHz, crimp termination, gold body, for RG-179 cable, bulk.

$8.8500Ref. price · indicative, final on quote
252103-75 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

252103-75 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeSnap-On
Frequency - max6 GHz
Cable groupRG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Operating temperature-65°C~165°C
Body materialBeryllium Copper
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishGold
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

MCX 75 Ohm Plug for RG-179 — 252103-75

It is a 75 Ohm impedance variant, designed for use with RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179 cables. The snap-on fastening provides quick, secure mating, and the gold-plated beryllium copper body and brass center contact with gold plating ensure low and stable contact resistance over 500 mating cycles.

This plug is factory-matched to the cable group listed: RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179. The crimp termination for the shield and the center conductor requires a standard hex crimp tool with the correct die for RG-179-size cable.

Frequently asked questions

What cable is compatible with 252103-75?

The 252103-75 is designed for RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179 cables. The kit includes the connector, contact, and ferrule for a complete crimp termination.

Is 252103-75 a BNC connector?

No, the 252103-75 is an MCX connector, not a BNC. MCX is a smaller, snap-on coupling interface, while BNC uses a bayonet lock. They are not mechanically or electrically interchangeable.
