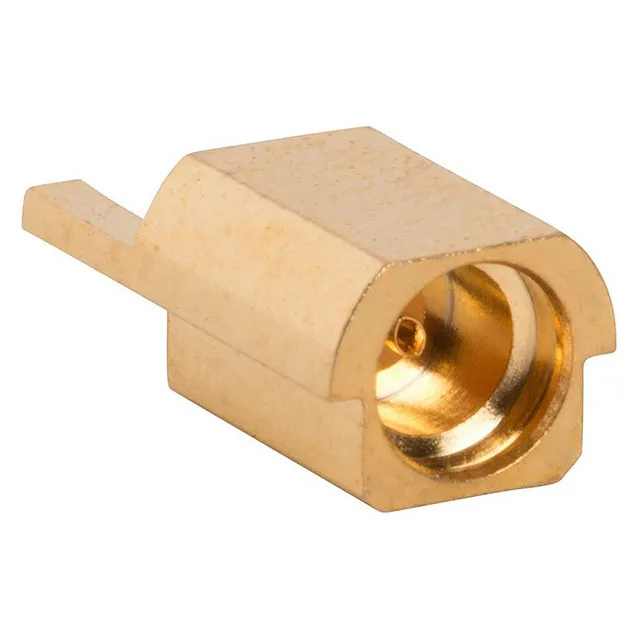

262107-10 — Amphenol product photo
Amphenol

TE Connectivity 262107-10 MMCX Jack, 50 Ohm, 6 GHz, SMT

MPN262107-10
Active

TE Connectivity MMCX jack, female socket, 50 Ohm, 6 GHz, 1 port, board edge SMT, gold body, snap-on fastening, 500 mating cycles.

$3.5774Ref. price · indicative, final on quote
262107-10 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

262107-10 Technical Specifications
ParameterValue
Mounting typeBoard Edge, Cutout; Surface Mount
Connector typeJack, Female Socket
Fastening typeSnap-On
Frequency - max6 GHz
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

MMCX Jack, 50 Ohm, 6 GHz — Board-Edge SMT for Compact RF

The 262107-10: This is a single-port, 1-port jack from the 262107 base series. The board edge, cutout mounting with solder shield termination suits RF board designs where the connector sits at the PCB periphery to keep the RF path short to the edge-launch trace.

Board Edge SMT — Footprint and Launch

The mounting type — board edge, cutout; surface mount — means this jack solders directly to pads at the PCB edge, with the shield grounded through the solder termination. For a 50 Ohm design, the trace width and ground-plane clearance on the board must match the launch geometry; the datasheet footprint is the reference.

Active — Sourced to Order

Active lifecycle status. Bulk packaging.

Frequently asked questions

What is the impedance and frequency range of 262107-10?

50 Ohm nominal impedance, rated to 6 GHz maximum frequency. The PTFE dielectric maintains the characteristic impedance across the band.

What is the mounting type for 262107-10?

Board edge, cutout surface mount with solder shield termination. Designed for edge-launch RF PCB layouts.
