75 Ohm 1.0/2.3 Receptacle — Right-Angle Panel Mount
The connector style is the compact push-pull 1.0/2.3 interface, not a BNC or SMA; it mates with the matching 1.0/2.3 plug. The 250 V voltage rating covers signal-level and low-power RF paths.

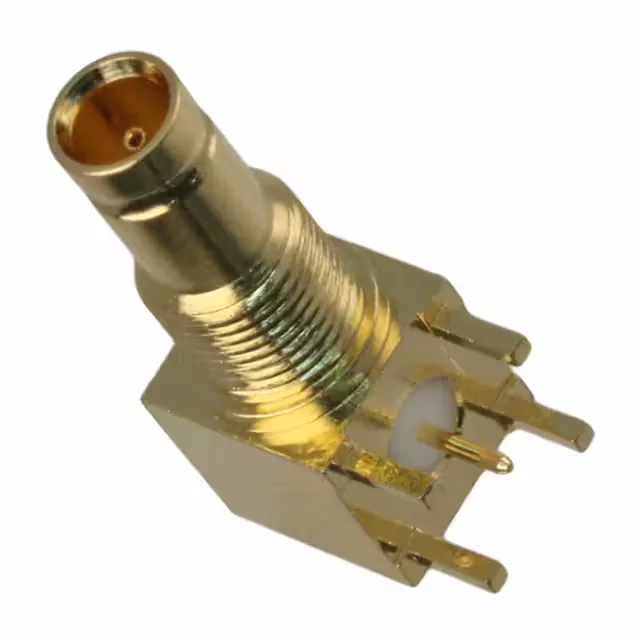

Amphenol RF 282100-75 1.0/2.3 Receptacle, 75 Ohm, 3 GHz
MPN282100-75
Active
Amphenol RF 1.0/2.3 receptacle, 282100-75, 75 Ohm, 1 port, right-angle panel mount through hole, solder termination, gold body, 3 GHz, 250 V, 500 mating cycles.
$13.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | 1.0/2.3 |
| Fastening type | Push-Pull |
| Voltage rating | 250 V |
| Frequency - max | 3 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper, Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 75Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Is 282100-75 a BNC connector?
No, the 282100-75 uses the 1.0/2.3 connector style, which is a compact push-pull coaxial interface distinct from BNC. It mates with matching 1.0/2.3 plugs.
