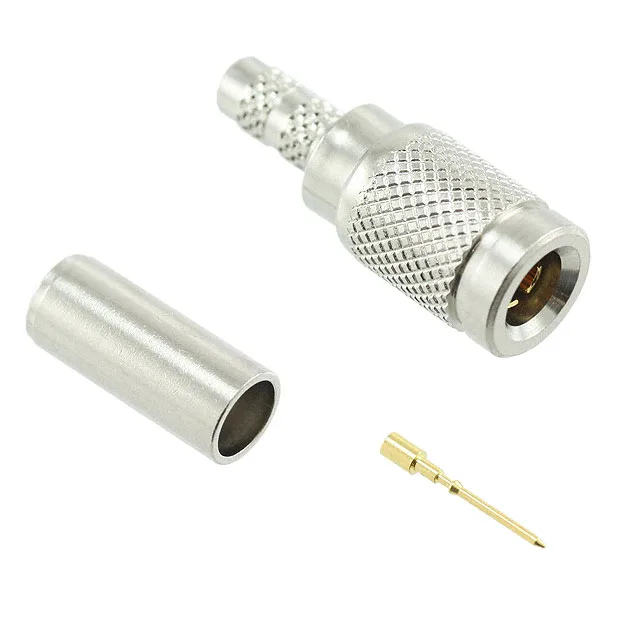

282118-75 — Amphenol product photo
Amphenol

Amphenol 282118-75 1.0/2.3 Plug, 75 Ohm, 3 GHz, Crimp

MPN282118-75
Active

Amphenol 1.0/2.3 plug, 75 Ohm, 3 GHz, crimp termination, nickel body, gold centre contact, for AT&T 735/Belden 735A1 cable.

$8.6600Ref. price · indicative, final on quote
282118-75 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

282118-75 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector type1.0/2.3
Fastening typePush-Pull
Voltage rating250 V
Frequency - max3 GHz
Cable groupAT&T 735, 735A, Belden 735A1
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper; Brass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm 1.0/2.3 Plug for AT&T 735 / Belden 735A1 Cable

The 282118-75: It is not a BNC connector — the 1.0/2.3 interface is a separate standard, smaller than BNC, and common in telecom base station and broadcast video distribution where the 75 Ohm impedance matches the cable plant. The plug accepts AT&T 735, 735A, and Belden 735A1 cable — a specific triaxial-style cable group, not RG-59 or RG-6.

Crimp Termination — Shield and Contact in One Step

Both the shield and the centre contact are crimp-terminated. For field termination, the cable prep must match the AT&T 735 / Belden 735A1 group dimensions — the ferrule ID and the centre contact crimp barrel are sized for that specific cable jacket and dielectric diameter.

3 GHz Bandwidth, 75 Ohm — Where It Fits

The 3 GHz maximum frequency covers the L-band and most of the S-band, which is enough for base station RF distribution, GPS signal splitting, and broadcast video up to 3G-SDI. The 75 Ohm impedance is non-negotiable for these signal paths — a 50 Ohm cable or connector would create a mismatch and degrade return loss.

Frequently asked questions

Where can I buy 282118-75 and what is the price?

Current pricing and availability are confirmed at the time of quote — submit an RFQ for your target quantity.

What cable does 282118-75 fit?

The 282118-75 is designed for AT&T 735, 735A, and Belden 735A1 cable. It is not compatible with standard RG-59, RG-6, or RG-179 cable — the ferrule and centre contact dimensions are specific to that cable group.

Is 282118-75 a standard BNC connector?

No. The 282118-75 uses the 1.0/2.3 connector style, which is a separate interface standard from BNC. The 1.0/2.3 is smaller in diameter and common in 75 Ohm telecom and broadcast applications. It will not mate with a BNC jack.
