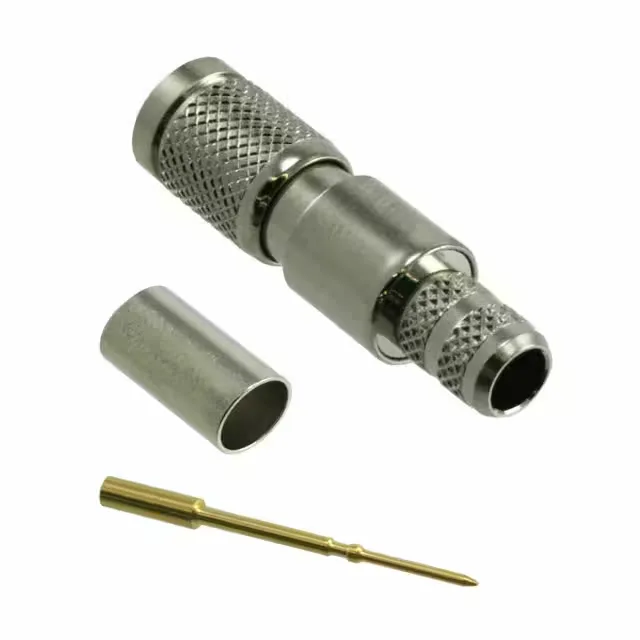

282135-75 — Amphenol product photo
Amphenol

Amphenol RF 282135-75 1.0/2.3 Plug, 75 Ohm, 3 GHz

MPN282135-75
Active

Amphenol RF 1.0/2.3 series, 282135-75, plug male pin, 75 Ohm, 3 GHz, crimp termination, nickel body, gold center contact, bulk package.

$8.6600Ref. price · indicative, final on quote
282135-75 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

282135-75 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector type1.0/2.3
Fastening typePush-Pull
Voltage rating250 V
Frequency - max3 GHz
Cable groupAT&T 734, 734A, Belden 1505A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper; Brass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The Amphenol RF 282135-75 is a 1.0/2.3 series plug, male pin, designed for 75 Ohm coaxial cable systems. This connector is built for video distribution, broadcast, and telecom infrastructure where the 1.0/2.3 interface provides a smaller footprint than BNC while maintaining 75 Ohm impedance up to 3 GHz.

Cable Compatibility and Field Termination

This plug is pre-configured for specific cable types: AT&T 734, 734A, and Belden 1505A. The crimp shield termination and crimp contact termination mean no solder is required in the field, which speeds up harness assembly and keeps the impedance consistent through the joint. The PTFE dielectric maintains the 75 Ohm characteristic through the connector body.

Frequently asked questions

Is the 282135-75 a BNC connector?

No, the 282135-75 is a 1.0/2.3 series connector, not a BNC. The 1.0/2.3 interface is a smaller 75 Ohm standard used in telecom and broadcast, distinct from the bayonet-lock BNC design.

What cable types work with the 282135-75?

This plug is compatible with AT&T 734, 734A, and Belden 1505A coaxial cables. The kit includes the connector, contact, and ferrule sized for these cable groups.

What is the mating half for the 282135-75?

The mating receptacle is the Amphenol RF 282133-75, a bulkhead-mount female socket with the same 1.0/2.3 interface and 75 Ohm impedance.
