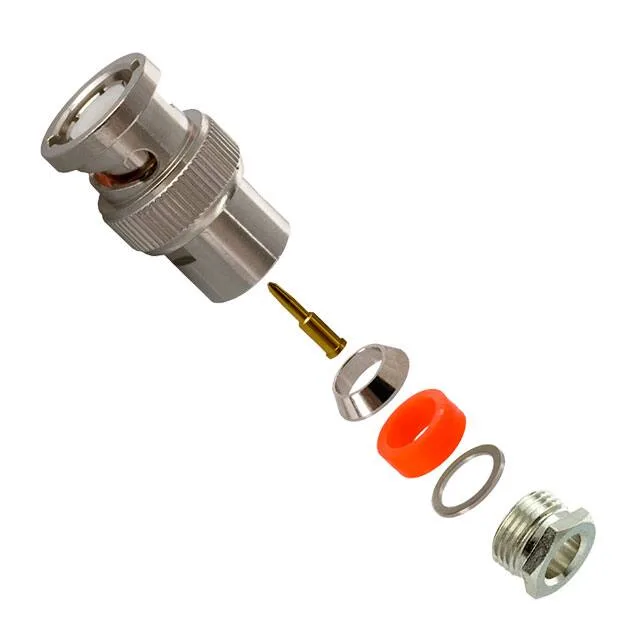

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, solder termination, bayonet lock, RG-59 cable group, includes 6-piece kit.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Clamp |
| Contact termination | Solder |
| Center contact plating | Gold |
The 31-212-RFX: The kit includes six pieces: the connector body, a braid clamp, a cable clamp, the centre contact, a gasket, and a washer.
The included gasket seals the cable entry, and the washer prevents galling between the nut and the body. For RG-59, strip the jacket per the manufacturer's recommended dimensions — the clamp accommodates the braid diameter typical of that cable group.
Yes. The 31-212-RFX is listed for RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, and 9209. The centre contact solders to the conductor; the braid clamp secures the shield.
The kit includes six pieces: the connector body, a braid clamp, a cable clamp, the centre contact, a gasket, and a washer. No additional hardware is needed for termination.
