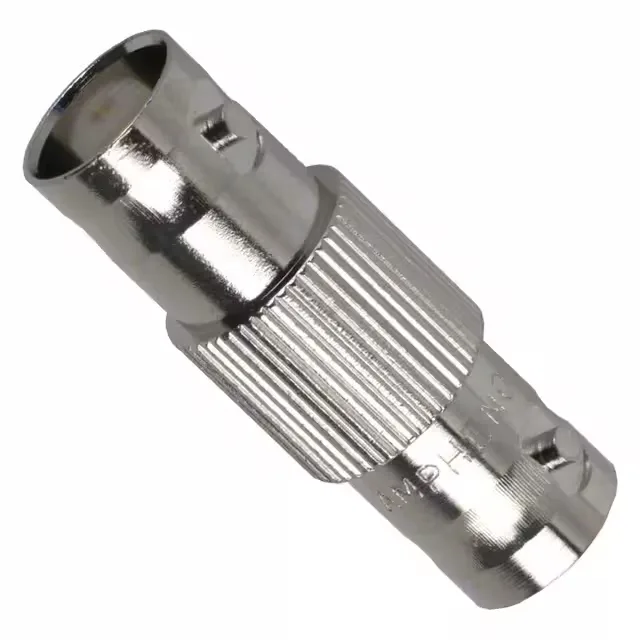

Amphenol RF BNC to BNC adapter, 31-219-RFX, straight, jack to jack, female to female, 50 Ohm impedance, 4 GHz max frequency, 500 mating cycles, gold-plated phosphor bronze center contacts, nickel-plated brass body, PTFE dielectric, free hanging in-line.
| Parameter | Value |
|---|---|
| Adapter type | Jack to Jack |
| Mounting | Free Hanging (In-Line) |
| Adapter series | BNC to BNC |
| Fastening type | Bayonet Lock, Bayonet Lock |
| Conversion type | Same Series |
| Frequency - max | 4 GHz |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Style | Straight |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Nickel |
| Center gender | Female to Female |
| Mating cycles | 500 |
| Center contact plating | Gold |
| Convert to (Adapter end) | BNC Jack, Female Socket |
| Convert from (Adapter end) | BNC Jack, Female Socket |
The Amphenol RF 31-219-RFX is a straight BNC-to-BNC adapter, joining two female BNC jacks back-to-back. It is a same-series barrel coupler — use it to extend a cable run, join two cables, or convert a male connector on a panel to a female bulkhead interface. The body is nickel-plated brass, the center contacts are gold-plated phosphor bronze, and the dielectric is PTFE.
The 31-219-RFX is a female-to-female adapter — both ends are BNC jacks with female center sockets. It joins two male BNC connectors or extends a cable run.
The 31-219-RFX is a 50 Ohm adapter, standard for BNC video, telecom, and instrumentation signal paths.
