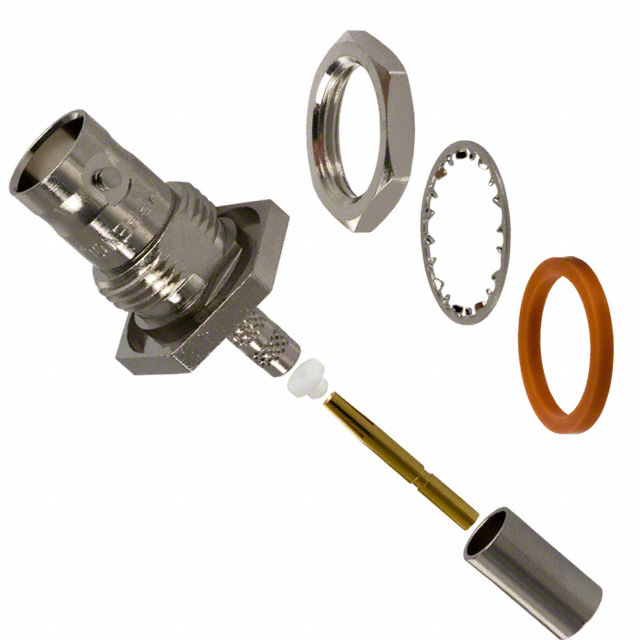

31-342-RFX — Amphenol product photo
Amphenol

31-342-RFX BNC Jack, 50 Ohm, 4 GHz, Bulkhead

MPN31-342-RFX
Active

Amphenol RF 31-342-RFX BNC jack, female socket, 50 Ohm, 4 GHz, panel mount bulkhead, crimp termination, nickel-plated brass body, gold-plated center contact, includes 6-piece installation kit.

$6.0100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-342-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 31-342-RFX: This connector is built for RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cables. Both the shield and center contact use crimp termination, which gives a consistent, repeatable mechanical and electrical bond—no solder wicking into the dielectric.

What the Kit Includes for a Bulkhead Install

The front-side nut mounting means the connector installs from the outside of the panel—the gasket seals against the panel face, and the lockwasher prevents the nut from backing off under vibration. No need to order hardware separately; it's all in the bag.

Frequently asked questions

What is the impedance of 31-342-RFX?

This is the standard impedance for RF and telecom systems, matched to 50 Ohm cable like RG-58 and LMR-195.

What cables are compatible with 31-342-RFX?

It is compatible with RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cables. Both shield and center conductor are crimp-terminated.
