31-5800 — Amphenol product photo
Amphenol

31-5800 BNC Plug, 50 Ohm, 4 GHz, RG-58, Crimp Termination

MPN31-5800
Active

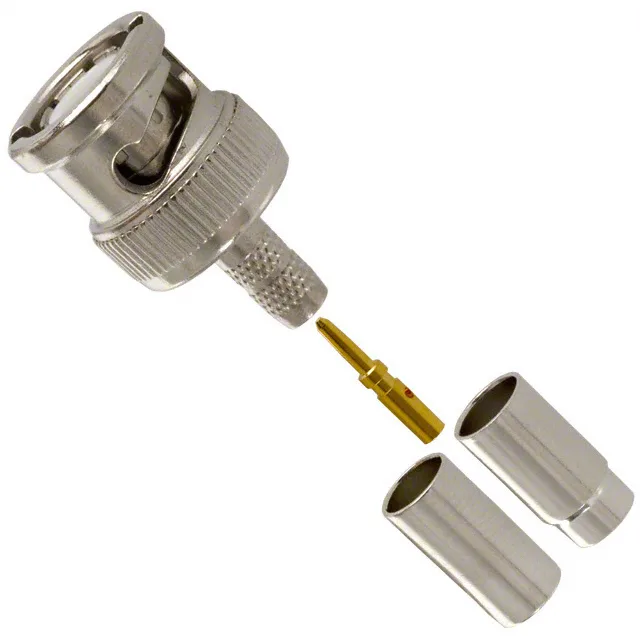

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, bayonet lock, crimp termination, for RG-58 plenum cable, includes connector + contact + 2 ferrules.

$4.8500Ref. price · indicative, final on quote
31-5800 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-5800 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-58 Plenum, 122, Belden 88240, 89907
Operating temperature-40°C~85°C
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 2 Ferrules
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Plug for RG-58 — Field-Termination Kit

The 31-5800: This is the connector you reach for when terminating RG-58 plenum, Belden 88240, or 89907 cable — the cable groups are listed right on the spec.

Crimp Termination — Field-Ready

That means a clean, repeatable termination in the field with a standard crimp tool — no solder iron needed. The zinc die-cast body with nickel finish holds up to the crimp cycle without cracking. Rated for 500 mating cycles, so it's built for test leads or equipment that gets connected and disconnected regularly.

Temperature and Build Quality

That covers outdoor enclosures, unheated equipment rooms, and industrial floor conditions. The silver housing color is standard for nickel-plated BNCs — easy to spot on a crowded patch panel.

Frequently asked questions

Where can I buy the 31-5800 BNC connector?

Submit a request for your target quantity and we'll confirm pricing and lead time at quote.

What cable does the 31-5800 work with?

The 31-5800 is designed for RG-58 Plenum, 122, Belden 88240, and 89907 cable groups. It includes the connector, one contact, and two ferrules for a complete termination.

Is the 31-5800 a BNC or TNC connector?

The 31-5800 is a BNC connector with a bayonet lock. It is not a TNC (threaded) connector.
