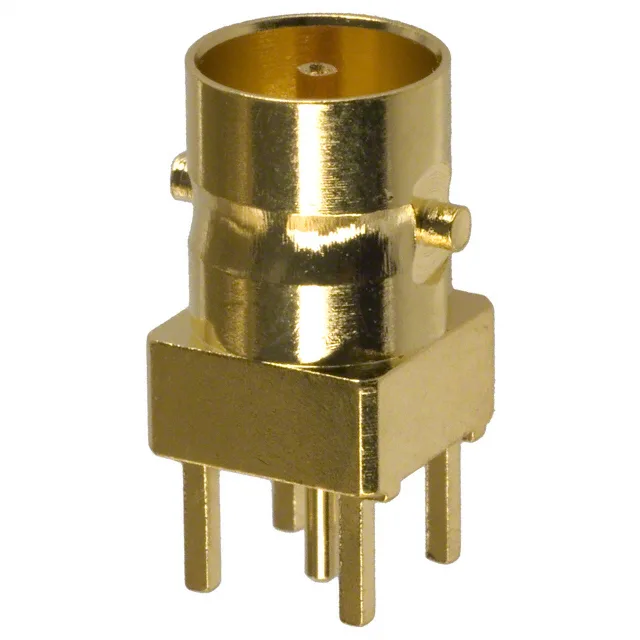

Amphenol RF BNC mini receptacle, 31-70250, 75 Ohm, 4 GHz, 1 port, through-hole solder, gold brass body, bayonet lock, 500 mating cycles.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Receptacle, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -40°C~85°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 75Ohm |
| Parameter | Value |
|---|---|
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.1dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
It is designed for the 75 Ohm video and broadcast signal chain, not the 50 Ohm RF test equipment standard. The bayonet coupling provides a quarter-turn positive lock that holds the cable pair mated without tools, standard for field-terminated video runs. Insertion loss is rated at 0.1 dB, a tight figure that matters on long cable runs where every tenth of a dB adds up.
Insertion loss is rated at 0.1 dB, a low figure that suits long video cable runs where loss budget is tight.
