75 Ohm F-Type Jack for RF Signal Paths

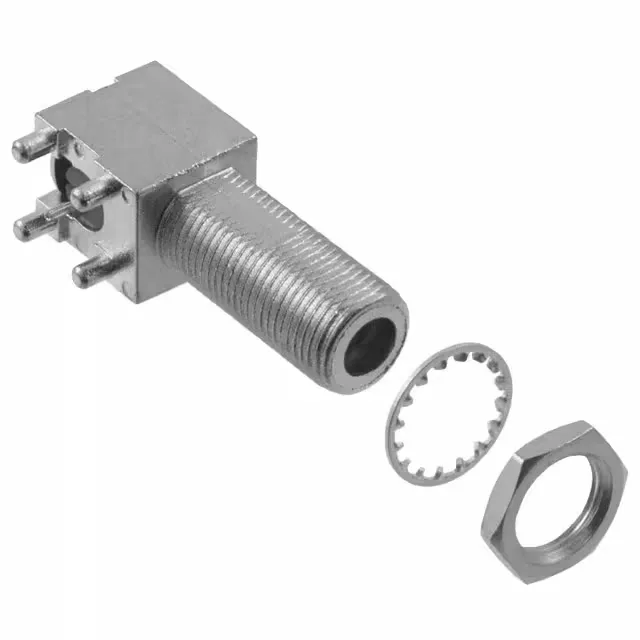

This is a 1-port bulkhead-mount connector with threaded fastening, rated to 3 GHz maximum frequency. The right-angle PCB termination and through-hole solder tails let it mount flush to the board edge while the panel nut secures the connector body to the enclosure wall.
500 Mating Cycles and Threaded Retention
The threaded coupling nut provides positive retention; the lockwasher maintains preload so the nut does not loosen over time. The tin-plated zinc body and tin-plated beryllium copper centre contact are a cost-effective choice for indoor or sheltered environments where corrosion resistance is adequate but gold is not required.
Mounting and Installation
Mounts to a panel via a bulkhead hole with the front-side nut — the connector body passes through from the outside, and the nut tightens against the lockwasher on the inside. The right-angle solder tails then go through the PCB and are soldered on the opposite side. This arrangement is common for enclosure wall feedthroughs where the RF cable connects on the exterior and the PCB sits inside.
