Zero insertion force (ZIF) with a slide lock — the actuator opens the contact beams, the notched 0.30mm-thick FPC inserts freely, and the slide lock clamps the cable without insertion force. Gold-plated bottom contacts wipe the FPC pads on insertion; rated for 10 mating cycles minimum, which suits field-service cable swaps in equipment that cycles the connector quarterly.

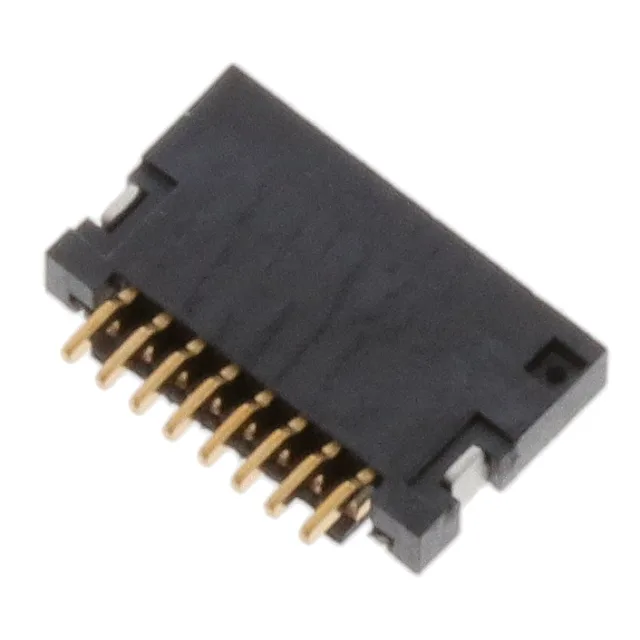

Amphenol ICC (FCI) SFVL series FPC connector, 8 positions, 0.020" (0.50mm) pitch, ZIF slide-lock actuation, right-angle SMT, gold-plated bottom contacts, 0.4A per circuit, 50V rating.
$0.6000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | SFVL |
| Mounting type | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -55°C~85°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic, Glass Filled, Halogen Free |
| Actuator material | Thermoplastic, Glass Filled, Halogen Free |
| Height above board | 0.035\" (0.88mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 8 |
Product details
Frequently asked questions
What is the mounting style of 59453-081110EDHLF?
Surface mount, right-angle — the connector sits parallel to the PCB with a 0.88mm height above board, saving z-height in tight enclosures.
Is 59453-081110EDHLF a ZIF connector?
Yes — zero insertion force with a slide lock. The actuator opens the contacts, the FPC inserts freely, and the slide lock clamps the cable without insertion force.
