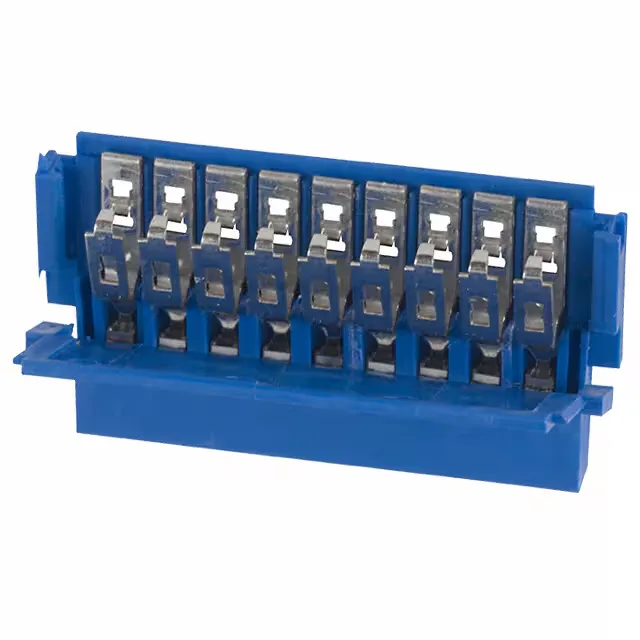

Amphenol ICC (FCI) Clincher™ series, 9-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, Zero Insertion Force (ZIF), tin-plated contacts, 2 A per contact at 500 V, free-hanging in-line mount, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting type | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 9 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 65801-009LF: It is a Zero Insertion Force (ZIF) connector with a slide lock actuator, meaning the FFC/FPC is inserted without force and then locked by sliding the actuator. The free-hanging (in-line) mount suits cable-to-board or cable-to-cable assemblies where the connector body is not panel-mounted.
The slide lock retains the cable after insertion. RoHS compliant.
The pitch is 0.100" (2.54mm).
Yes, it features Zero Insertion Force (ZIF) with a slide lock actuator.
