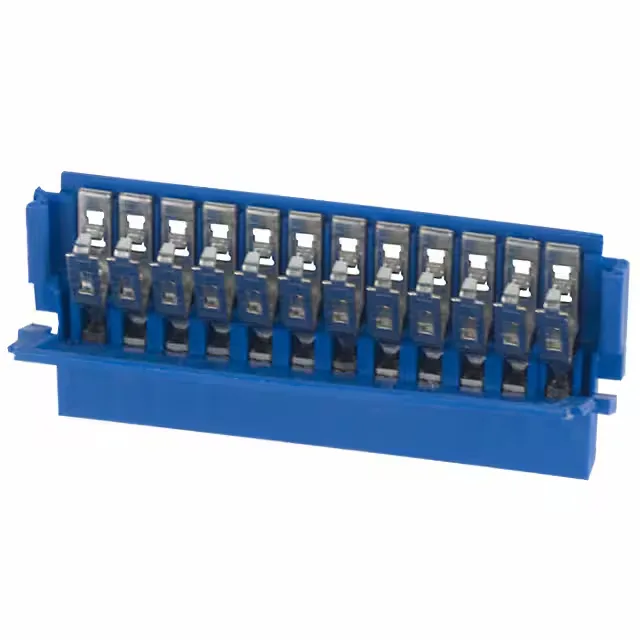

65801-012LF — Amphenol product photo
Amphenol

65801-012LF Amphenol ICC (FCI) Clincher™ FFC/FPC Receptacle

MPN65801-012LF
Active

Amphenol ICC (FCI) Clincher™ 65801-012LF, 12-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF actuation with slide lock, tin-plated contacts rated 2A, free-hanging mount, operating temperature -65°C~105°C.

$2.4600Ref. price · indicative, final on quote
65801-012LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-012LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions12
Contact finish thickness100.0µin (2.54µm)

Product details

The 65801-012LF is a 12-position FFC/FPC receptacle from the Clincher™ series by Amphenol ICC (FCI). This is a reliable, low-wear connection for repeated mating — the 100 mating cycle rating is typical for tin-plated ZIF connectors in semi-permanent installations.

The cable end type is straight or tapered — tapered ends ease insertion into the ZIF mechanism. Termination is solder, meaning the connector is soldered to a PCB or cable assembly, not crimped. Free-hanging (in-line) mounting means this is a cable-end receptacle — it does not mount to a board. It mates with a board-mount header or another free-hanging half. The slide lock provides retention against vibration, though the 100 mating cycle limit means it's not designed for frequent disconnect.

Frequently asked questions

Is 65801-012LF compatible with FPC cables?

Yes, it accepts both FFC and FPC cables with a thickness of 0.30mm or 0.33mm. The cable end must be straight or tapered for proper insertion into the ZIF mechanism.

What is the pitch of 65801-012LF?

The pitch is 0.100" (2.54mm) — a standard spacing for signal-level flat-flex connectors. Confirm your cable or board footprint matches this pitch.
