Amphenol ICC (FCI) Clincher™ FFC/FPC receptacle, 13 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, ZIF actuation, tin-plated contacts, slide lock, free-hanging mount, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 13 |
| Contact finish thickness | 100.0µin (2.54µm) |

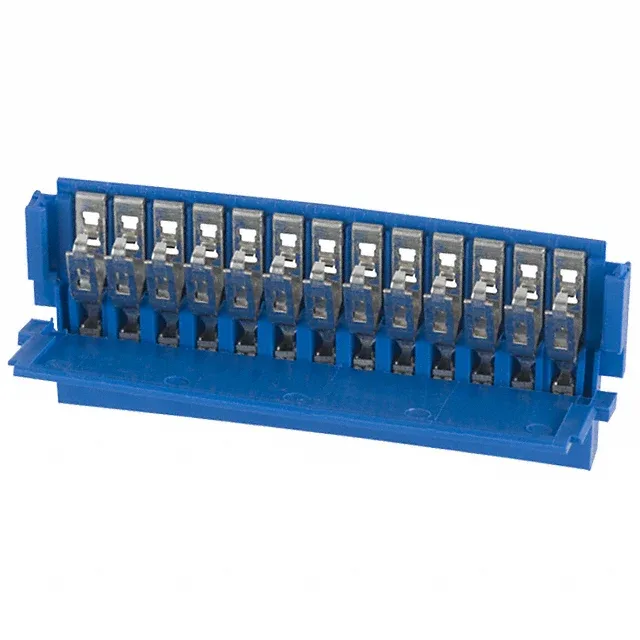

The 65801-013LF: This is a 13-position FFC/FPC receptacle from the Clincher series, built for 0.100" (2.54mm) pitch flat flex cable. The housing is blue thermoplastic rated UL94 V-0, and the connector mounts free-hanging (in-line) — no board footprint needed.
The ZIF mechanism uses a black actuator that pivots to clamp the FFC.
The connector accepts FFC or FPC with a thickness of 0.30mm or 0.33mm. The cable end can be straight or tapered. The ZIF actuator clamps the cable after insertion.
All share the same 0.100" pitch, 2 A rating, ZIF actuation, and tin contact finish. The position count difference means a direct swap requires a board or harness change.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
