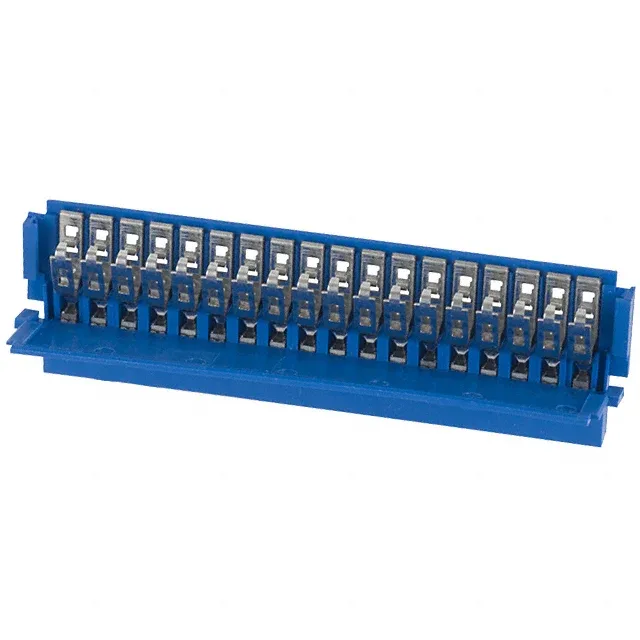

Amphenol ICC (FCI) Clincher™ series, 65801-018LF, 18-position FFC/FPC receptacle, 0.100" (2.54 mm) pitch, ZIF actuation, slide lock, tin-plated contacts, 2 A, 500 V, UL94 V-0, free hanging, tray.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 18 |
| Contact finish thickness | 100.0µin (2.54µm) |
Accepts FFC or FPC cables with a thickness of 0.30 mm or 0.33 mm — the two common gauges for 2.54 mm pitch flex circuits. The cable end type is straight or tapered, giving flexibility in cable routing.
Rated for 100 mating cycles minimum. For a field-service harness that is disconnected quarterly, 100 cycles represents about 25 years of service — well within the product lifespan.
The only difference is position count: 65801-018LF has 18 positions; 65801-019LF has 19 positions. All other specs — pitch, current, voltage, ZIF, slide lock, tin finish, housing color, mating cycles — are identical. If your FFC carries 18 conductors, the 018LF is the correct match.
No. The slide lock is integrated into the connector body — it is the actuator that also provides locking. No separate part is needed.
