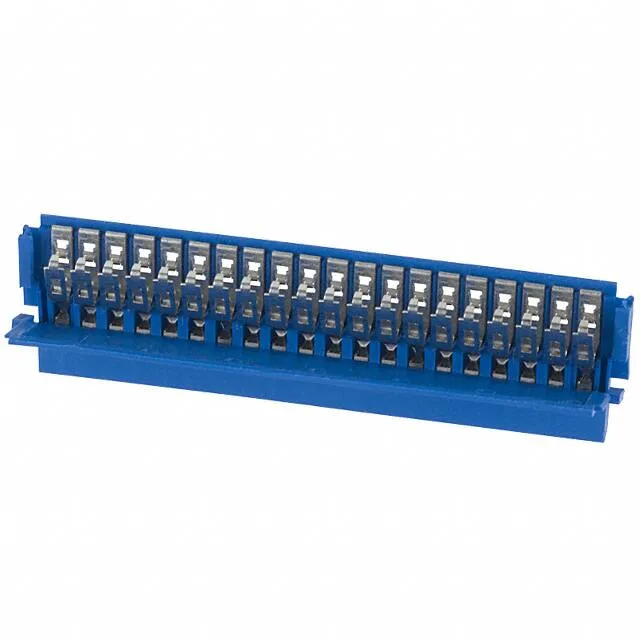

Amphenol ICC (FCI) Clincher™ series, 20-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF actuation with slide lock, tin-plated contacts, rated 2 A per circuit at 500 V, free-hanging in-line mount.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 20 |
| Contact finish thickness | 100.0µin (2.54µm) |
Accepts FFC or FPC cables 0.30mm or 0.33mm thick, with straight or tapered cable ends.
The tin contact finish and narrow pitch set the current ceiling; for higher current, look to the gold-plated variants in the Clincher series. The 100 mating cycles are typical for a ZIF connector — the contact beam wipes the FFC pad on insertion, so cycle life is limited by the tin plating wear, not the housing.
The pitch is 0.100" (2.54mm), a standard spacing for FFC/FPC connectors.
