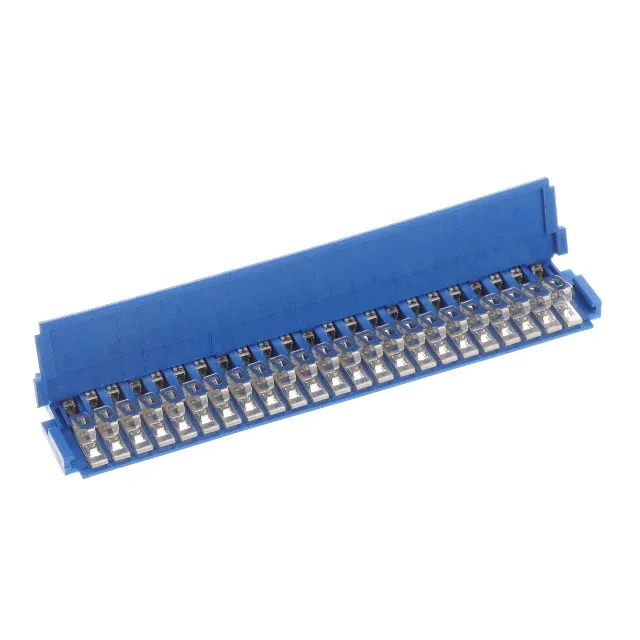

65801-023LF — Amphenol product photo
Amphenol

65801-023LF Amphenol ICC Clincher™ FFC/FPC Receptacle

MPN65801-023LF
Active

Amphenol ICC (FCI) Clincher™ series, 65801-023LF, FFC/FPC receptacle, 23 circuits, 0.100" (2.54mm) pitch, ZIF slide-lock actuator, tin-plated contacts, 2A at 500V, free-hanging mount, UL94 V-0.

$4.2900Ref. price · indicative, final on quote
65801-023LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-023LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeNotched
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorGray
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions23
Contact finish thickness100.0µin (2.54µm)

Product details

23-Position ZIF Receptacle for 0.33mm FFC

The 65801-023LF is a 23-position FFC/FPC receptacle from the Amphenol ICC Clincher™ series, using a zero-insertion-force (ZIF) slide-lock actuator to secure the cable without stressing the contacts during insertion. The receptacle accepts only notched FFC with a thickness of 0.33mm; the slide lock then clamps the cable in place, preventing pull-out under moderate vibration.

Position Count vs. Siblings: 23 vs. 14, 7, 5

The 65801-023LF shares the same 0.100" pitch, tin plating, 100-cycle rating, and ZIF slide-lock mechanism with its Clincher™ siblings 65801-014LF (14 pos), 65801-007LF (7 pos), and 65801-005LF (5 pos). All are active, RoHS compliant, and tray-packed. For a BOM requiring a higher circuit density, the 23-position version is the largest standard offering in this series — there is no 30-position sibling.

The part is available in tray packaging.

Frequently asked questions

Is 65801-023LF a ZIF connector?

Yes. The connector uses a Zero Insertion Force (ZIF) slide-lock actuator — the FFC is inserted without force, then the slide lock is engaged to clamp the cable. This prevents contact beam damage during assembly and provides positive retention.

What FFC thickness does 65801-023LF accept?

It accepts 0.33mm-thick FFC with a notched cable end. The notched end aligns with the keying in the receptacle to ensure correct orientation.
