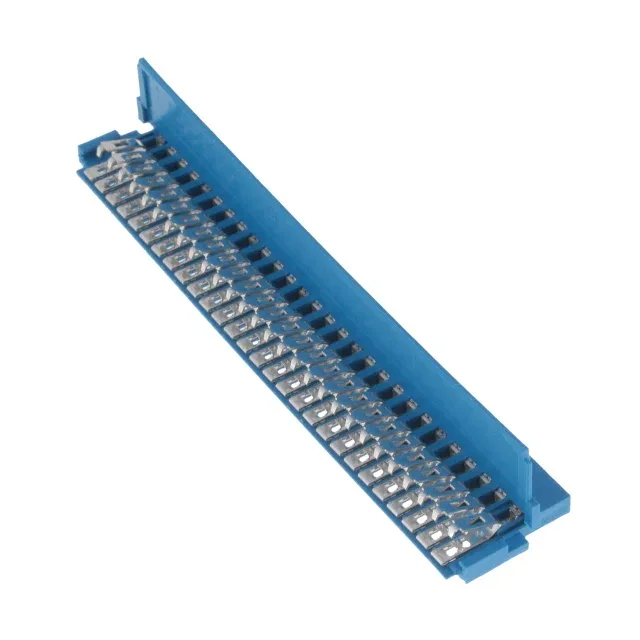

65801-028LF — Amphenol product photo
Amphenol

65801-028LF FFC/FPC Receptacle 28 Pos 2.54mm ZIF Slide Lock

MPN65801-028LF
Active

Amphenol ICC (FCI) Clincher™ series, 28-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF slide-lock actuation, tin-plated contacts, rated 2 A per circuit at 500 V, UL94 V-0 housing.

$5.2400Ref. price · indicative, final on quote
65801-028LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-028LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions28
Contact finish thickness100.0µin (2.54µm)

Product details

Clincher™ 28-Position ZIF Receptacle at 2.54mm Pitch

The 65801-028LF: This is a 28-position, 0.100" (2.54mm) pitch FFC/FPC receptacle from the Amphenol ICC Clincher™ series. The tin-plated contacts are rated 2 A per circuit at 500 V, with a 100-cycle mating life.

Why 100 Mating Cycles with Tin Plating Matters

Tin wears faster than gold; budget the 100-cycle ceiling against the connector's service life. At 2 A per contact the temperature rise stays inside the housing material limit.

Available in tray packaging. No stock-holding claim — sourced through independent distribution channels.

Position Count vs. Siblings in the Clincher™ Series

The 28-position variant (65801-028LF) shares the same 0.100" pitch, ZIF slide lock, tin plating, and 2 A rating as the 20-position (65801-020LF), 19-position (65801-019LF), and 18-position (65801-018LF) siblings.

Frequently asked questions

What is the pitch of 65801-028LF?

The pitch is 0.100" (2.54mm).

Does 65801-028LF have a slide lock and is it a ZIF connector?

Yes, it uses a slide-lock ZIF mechanism. The actuator is black; the housing is blue. The cable is inserted with zero insertion force, then the slide lock clamps it in place.

What is the mating cycle rating for 65801-028LF?

Rated for 100 mating cycles minimum with the tin-plated contacts. For applications requiring frequent reconnection, consider a gold-plated alternative.
