Amphenol ICC (FCI) Clincher™ series, 7-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, 2A current rating, 500V, flip lock actuator, 30.0µin gold or GXT™ contacts, free-hanging mount, active production.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Beige |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 7 |
| Contact finish thickness | 30.0µin (0.76µm) |

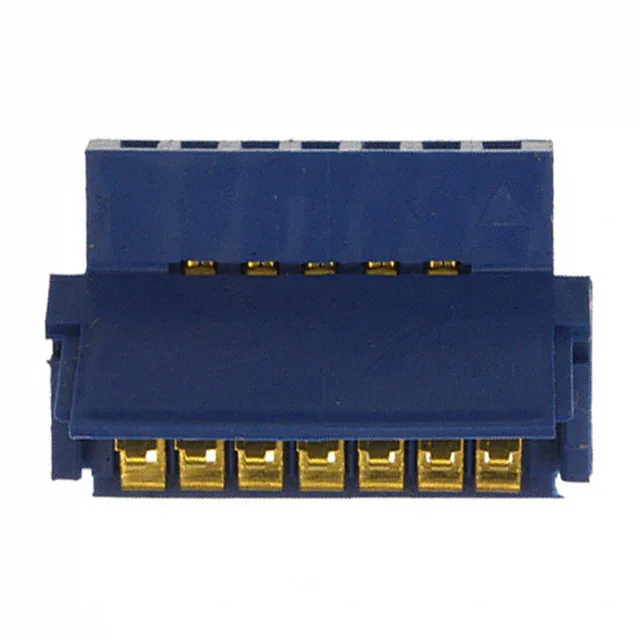

The 65801-036LF is a 7-position FFC/FPC receptacle from the Amphenol ICC (FCI) Clincher™ series. Free-hanging (in-line) mounting means this receptacle can terminate a cable assembly or panel-mount flex without a PCB footprint.
Termination is solder-only — no crimp or press-fit option for this receptacle.
RoHS-compliant per.
The 65801-036LF is a 7-position FFC/FPC receptacle with 0.100" (2.54mm) pitch, rated 2A per contact at 500V. Operating temperature range is -65°C to 105°C. Housing is UL94 V-0 rated thermoplastic, blue with a beige actuator.
For 11 or 16 positions, see 65801-040LF and 65801-045LF respectively.
