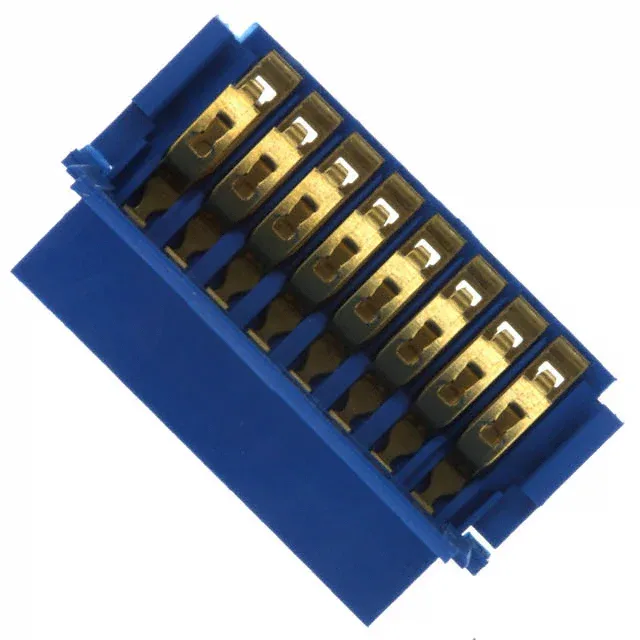

65801-037LF — Amphenol product photo
Amphenol

65801-037LF Amphenol ICC (FCI) Clincher™ 8-Position FFC/FPC

MPN65801-037LF
Active

Amphenol ICC (FCI) Clincher™ FFC/FPC receptacle, 8 positions, 0.100" (2.54 mm) pitch, 2 A per contact, 30.0 µinch gold plating, flip lock, free-hanging termination, UL94 V-0 housing.

$2.6300Ref. price · indicative, final on quote
65801-037LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-037LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBeige
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions8
Contact finish thickness30.0µin (0.76µm)

Product details

The 65801-037LF is an 8-position FFC/FPC receptacle from the Clincher™ series by Amphenol ICC (FCI). It accepts 0.20 mm thick flat flex cable with a tapered end, and the flip lock secures the cable without a secondary actuator — quick to engage on the line or in the field.

The 0.20 mm FFC thickness is a common standard for signal-level flex circuits; the tapered cable end aids insertion into the flip-lock mechanism.

The 7-position 65801-036LF and the 11-position 65801-040LF are direct position-count alternatives — same footprint width per position, same cable thickness, same mating cycle rating.

Frequently asked questions

Is 65801-037LF RoHS compliant?

Yes, the 65801-037LF is RoHS compliant per the manufacturer listing.

What is the closest functional alternative to 65801-037LF?

The 7-position 65801-036LF is the nearest sibling — same pitch, current rating, gold thickness, and flip lock. For a wider cable, the 11-position 65801-040LF or 16-position 65801-045LF are direct position-count alternatives.

What type of cable does 65801-037LF accept?

It accepts 0.20 mm thick FFC or FPC with a tapered cable end. The 0.100" pitch matches standard 2.54 mm conductor spacing.
