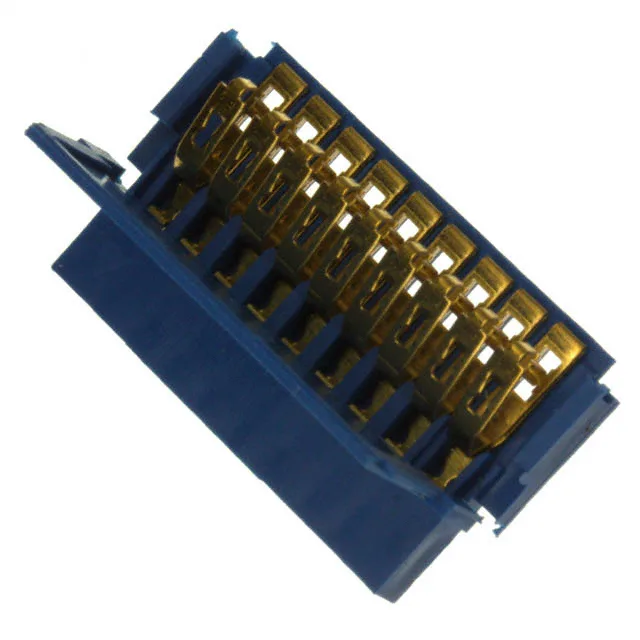

65801-038LF — Amphenol product photo
Amphenol

65801-038LF Amphenol ICC (FCI) Clincher™ FFC/FPC Receptacle

MPN65801-038LF
Active

Amphenol ICC (FCI) Clincher™, 9-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF flip-lock actuation, solder retention, 30µin gold contacts, rated 2A at 500V, -65°C to 105°C, UL94 V-0.

$2.8800Ref. price · indicative, final on quote
65801-038LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-038LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.30mm
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

9-Position FFC/FPC Receptacle at 0.100" Pitch

The 65801-038LF: It accepts 0.30mm-thick flat flex cable and terminates via solder to the board. The ZIF flip-lock mechanism secures the cable without insertion force, and the backlock feature prevents accidental disengagement under vibration.

ZIF Actuation and Solder Retention for Reliable Assembly

Zero Insertion Force (ZIF) actuation with a flip-lock and backlock means the FFC is inserted without stress on the contacts, then locked by flipping the actuator closed. The backlock holds the cable in place even under moderate cable strain. The blue housing and black actuator provide visual polarity confirmation during assembly.

Gold Plating and 100 Mating Cycles for Field Service

The gold finish also resists corrosion in environments with humidity or mild industrial atmospheres.

It is RoHS compliant.

Frequently asked questions

Is 65801-038LF a ZIF connector?

Yes, it uses Zero Insertion Force (ZIF) actuation with a flip-lock and backlock mechanism. The FFC cable is inserted without force, then locked by closing the actuator.

What is the pitch and position count of 65801-038LF?

The pitch is 0.100" (2.54mm) and it has 9 positions.

Is 65801-038LF RoHS compliant?

Yes, it is RoHS compliant.
