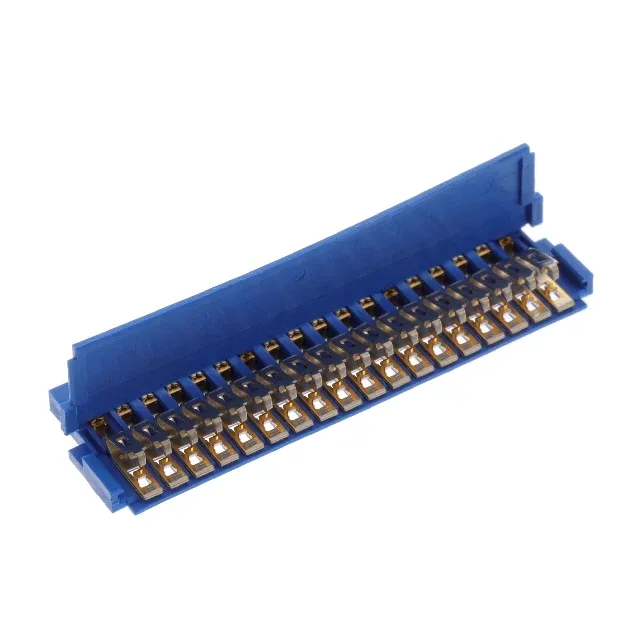

Amphenol ICC (FCI) Clincher™ FFC/FPC receptacle, 18 positions, 0.100" (2.54mm) pitch, ZIF flip-lock, solder termination, 30 µinch gold contacts, rated 2 A, 500 V, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting type | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 18 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 65801-047LF: The ZIF flip-lock actuator accepts a 0.20mm-thick notched FFC or FPC and secures it without insertion force, reducing wear on the flex circuit pads.
If the BOM calls for 14 circuits, the 65801-043LF is a drop-in substitute with the same footprint and mating interface. For 18 circuits, this is the correct order code.
It is RoHS compliant.
The 65801-043LF is identical except for position count: 14 positions vs 18 on this part. Same pitch, current, voltage, gold thickness, ZIF flip lock, and housing color.
