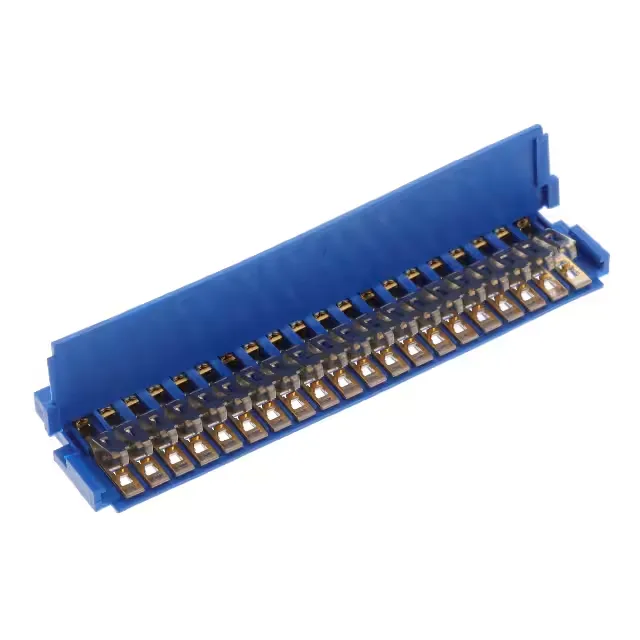

65801-049LF — Amphenol product photo
Amphenol

65801-049LF Amphenol ICC (FCI) Clincher™ FFC/FPC Receptacle

MPN65801-049LF
Active

Amphenol ICC (FCI) Clincher™ series, 65801-049LF, 20-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF actuation with flip lock, 30 µin gold contacts, rated 2 A per contact at 500 V, free-hanging in-line mount, UL94 V-0 housing.

$6.8300Ref. price · indicative, final on quote
65801-049LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-049LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.30mm
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

ZIF Actuation and Flip Lock — Tool-Free Cable Retention

The 65801-049LF: Zero Insertion Force (ZIF) with a flip lock and backlock: the actuator opens to accept the FPC, then closes to clamp the contacts against the pads without scraping the gold surface. Free-hanging (in-line) mount means this receptacle terminates the cable end and mates with a panel-mounted or board-mounted header; it does not solder to a PCB.

Peer Comparison — 20 vs 24 Positions in the Same Series

The closest functional second-source within the Clincher™ series is 65801-053LF: same pitch (0.100"), same gold plating (30 µin), same ZIF flip lock and free-hanging mount, but 24 positions instead of 20. If the BOM calls for 24 circuits, 65801-053LF is a direct drop-in; if 20, this 65801-049LF is the match.

Frequently asked questions

What is the pitch of the 65801-049LF?

The pitch is 0.100" (2.54mm). This is a standard FFC/FPC pitch that matches many ribbon cables and simplifies PCB footprint matching.

How many mating cycles does the 65801-049LF support?

Rated for 100 mating cycles.

What cable type is compatible with the 65801-049LF?

It accepts FFC or FPC cable with a thickness of 0.30 mm. The cable end type is tapered; the ZIF mechanism with flip lock holds the cable securely.
