Amphenol ICC (FCI) Clincher™ series, 65801-053LF: 24-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, 2A per contact, 30µin gold plating, ZIF flip-lock actuator, free-hanging in-line mount, -65°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 24 |
| Contact finish thickness | 30.0µin (0.76µm) |

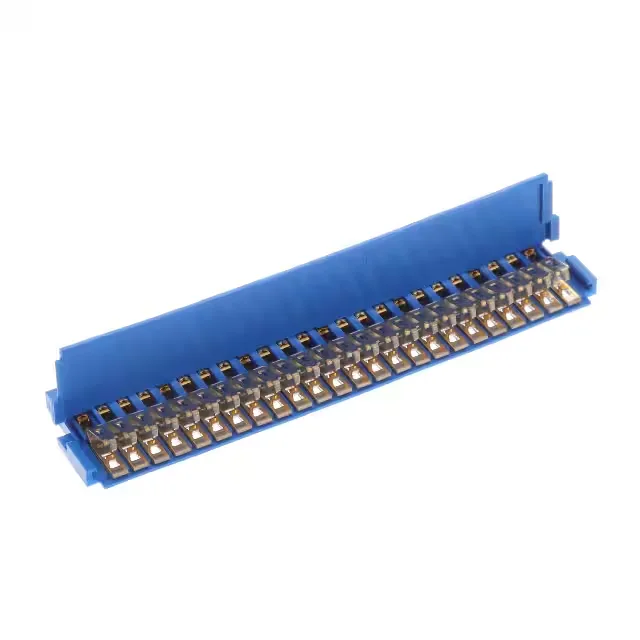

The 65801-053LF is a 24-position FFC/FPC receptacle from the Clincher™ series by Amphenol ICC (FCI).
With 24 positions, this receptacle handles a 24-conductor FFC or FPC. The tapered cable end type eases insertion into the ZIF mechanism — the flip lock then clamps the cable without stressing the conductors.
This receptacle accepts FFC or FPC cables with a thickness of 0.30mm. The cable end type is tapered to ease insertion into the ZIF flip-lock mechanism.
The 65801-049LF is the closest functional second-source: same pitch, current rating, plating, and locking feature, but with 20 positions instead of 24. Both are active and share the same housing color and mounting style.
