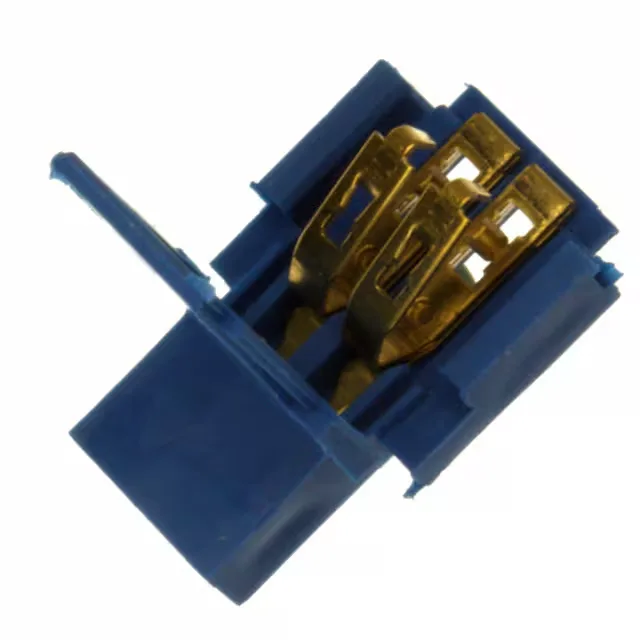

Amphenol ICC (FCI) Clincher™ series, 2-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, 2 A, 500 V, gold-plated contacts, ZIF flip lock, free-hanging solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Natural |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 2 |
| Contact finish thickness | 30.0µin (0.76µm) |
The ZIF (Zero Insertion Force) design with a flip lock actuator eliminates insertion force on the FPC, preventing damage to the thin 0.20mm-thick cable.
The connector accepts FFC or FPC with a thickness of 0.20mm. The ZIF flip lock accommodates this thickness without requiring insertion force.
Yes, it uses a flip lock mechanism that secures the FPC after insertion, providing positive retention without a secondary latch.
