Amphenol ICC (FCI) Clincher™ series, 4-position, 0.100" (2.54mm) pitch, CIC receptacle, ZIF slide lock, tin-plated contacts, 2A, 500V, free-hanging, solder termination.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | CIC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Gray |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 4 |
| Contact finish thickness | 100.0µin (2.54µm) |

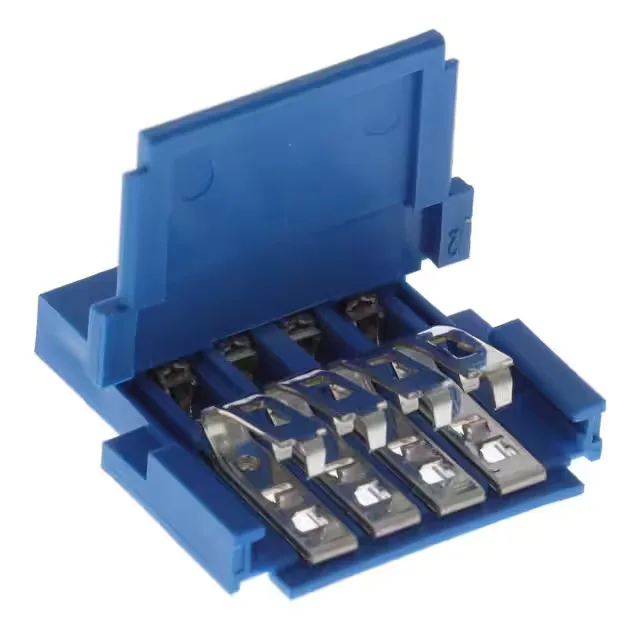

The 65801-104LF is a 4-position, 0.100" (2.54mm) pitch FFC receptacle from the Amphenol ICC (FCI) Clincher™ series. The housing is blue thermoplastic, UL94 V-0 rated, and the connector mounts free-hanging (in-line) with solder termination. It accepts a 0.33mm thick FFC with a notched cable end type — the notch aligns with the housing keying to prevent reverse insertion.
The 65801-104LF accepts a 0.33mm thick FFC with a notched cable end. The notch aligns with the housing keying to prevent reverse insertion. Using a different thickness or a straight (unnotched) cable may not seat properly in the ZIF slide lock.
The connector is a CIC (Connector for Integrated Circuit) type, which is essentially an FFC receptacle with a slide-lock actuator. Standard FFC with the correct pitch and thickness will mate, provided the cable end is notched to match the housing keying.
CIC (Connector for Integrated Circuit) is a specific series name used by Amphenol ICC for their Clincher™ line of FFC receptacles. In practice, a CIC connector is an FFC receptacle with a ZIF slide-lock mechanism. The 65801-104LF is a CIC type, meaning it uses a slide lock rather than a flip-lock or non-ZIF latch. The functional difference is the actuation method — slide lock vs. flip lock — but both accept standard FFC cables.
