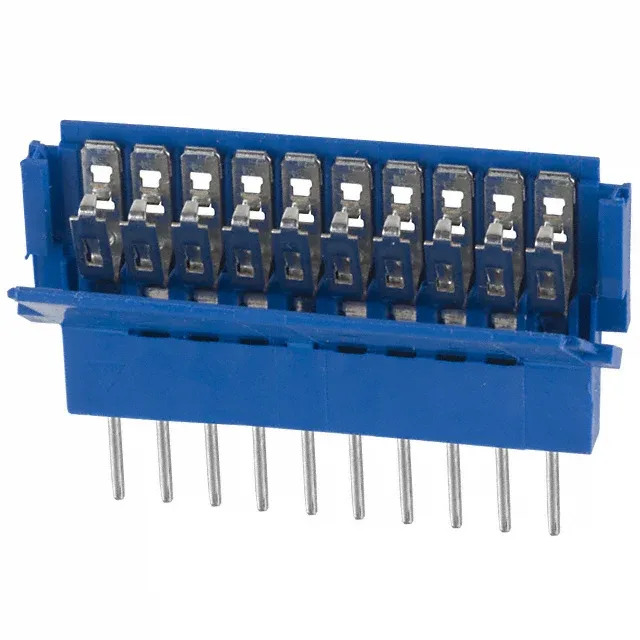

66226-010LF — Amphenol product photo
Amphenol

66226-010LF FFC Header 10 Pos 2.54mm Pitch ZIF Slide Lock

MPN66226-010LF
Active

Amphenol ICC (FCI) Clincher™ 66226-010LF — 10-position, 0.100" (2.54mm) pitch FFC header, ZIF actuation, slide lock, tin-plated contacts, 2 A rating, UL94 V-0 housing, free-hanging in-line mount.

$1.3800Ref. price · indicative, final on quote
66226-010LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-010LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions10
Contact finish thickness100.0µin (2.54µm)

Product details

10-Position 2.54mm FFC Header — ZIF Actuation and Slide Lock

The 66226-010LF is a 10-position, 0.100" (2.54mm) pitch FFC header from the Amphenol ICC (FCI) Clincher™ series. The tin-plated contacts (100.0 µinch thickness) and 100 mating cycles suit this connector for signal-level interconnects where the cable is mated during manufacturing and left connected — not for high-cycle or corrosive environments.

Free-Hanging In-Line Mount with Solder Retention

The slide lock actuator is black, the housing is blue, and the cable end type is straight or tapered, giving flexibility in cable routing.

Frequently asked questions

Is the 66226-010LF compatible with 2.54mm pitch FFC cables?

The connector accepts FFC thicknesses of 0.30mm and 0.33mm, and the ZIF mechanism with slide lock secures the cable without tools.

What is the difference between 66226-010LF and 66226-014LF?

The 66226-010LF has 10 positions; the 66226-014LF has 14 positions. Both share the same 0.100" (2.54mm) pitch, ZIF actuation, slide lock, tin plating, and 2 A rating.
