What this FFC header does in the harness

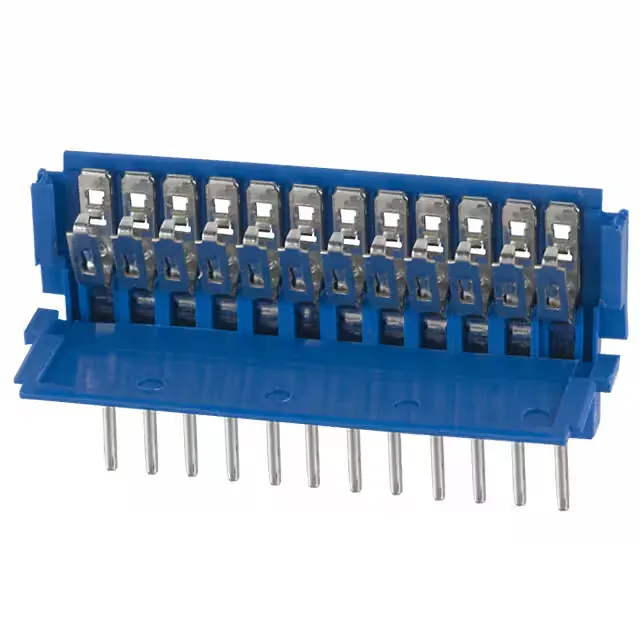

The 66226-012LF is a 12-position FFC header from the Clincher™ series, designed for free-hanging in-line termination to a notched flat flex cable. The 100 mating cycles are enough for a one-time assembly or periodic rework; if the connector sees quarterly disconnection in field service, plan for eventual contact wear.
Mating and cable fit
This header accepts a 0.33 mm thick FFC with a notched cable end. The slide lock actuates the ZIF clamp — no insertion force on the contacts during cable insertion, which protects the thin flex traces from damage. The housing is blue with a gray actuator, making visual polarity and lock engagement quick during panel wiring. The free-hanging mount means the connector is not board-mounted — it terminates an FFC cable directly, often used as a jumper between boards or to a display.
How it compares to other Clincher positions
The 12-position 66226-012LF shares the same 0.100" pitch, ZIF slide lock, tin contacts, and 2 A rating as the 13-position 66226-013LF, the 8-position 66226-008LF, and the 2-position 66226-002LF.
