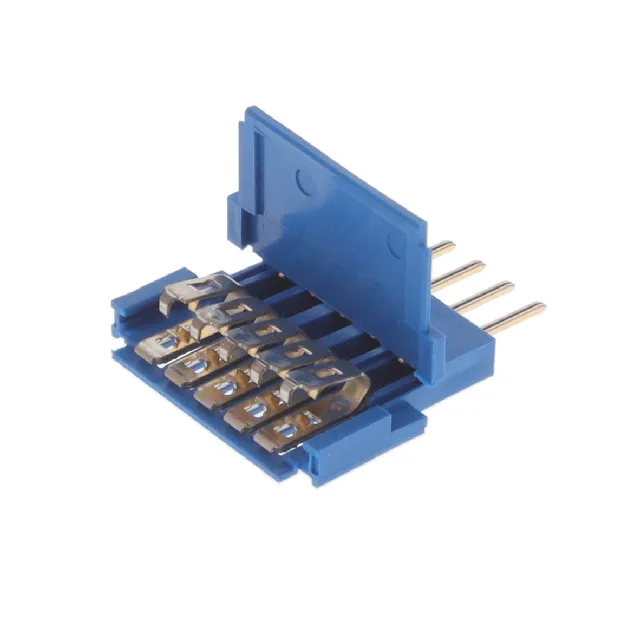

Amphenol ICC (FCI) Clincher™ series FFC header, 5 positions, 0.100" (2.54mm) pitch, solder termination, ZIF flip lock, gold-plated contacts, 2A, 500V, UL94 V-0, free-hanging mount.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC |
| Connector (Contact type) | Header |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Natural |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 5 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 66226-037LF is a 5-position FFC header from Amphenol ICC's Clincher™ series, designed for free-hanging (in-line) termination of notched FFC cable.
Zero Insertion Force (ZIF) with a flip lock actuator — open the actuator, insert the 0.20mm-thick notched FFC, close the lock. No crimp or press-fit option on this member.
Yes, it has a flip lock (ZIF actuator) that secures the FFC after insertion. No secondary latch is needed.
It requires a notched cable end. The 4-position sibling (66226-036LF) uses a tapered end, so verify your FFC's end style before ordering.
