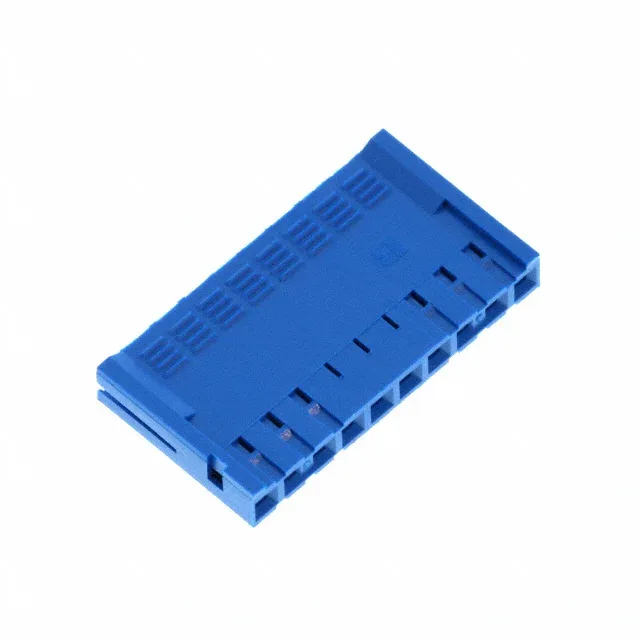

Amphenol ICC (FCI) Duflex FFC/FPC receptacle housing, order code 67013-010LF, 10 positions, single row, 0.100" (2.54mm) pitch, 3 A, 500 V, PBT glass-filled housing, UL94 V-0, -65°C~125°C.
| Parameter | Value |
|---|---|
| Series | Duflex™ |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC, FPC |
| Voltage rating | 500 V |
| Current rating | 3 A |
| Operating temperature | -65°C~125°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| FFC, FCB thickness | 0.31mm |
| Positions | 10 |
The 67013-010LF is the 10-circuit receptacle housing in Amphenol ICC (FCI)'s Duflex FFC/FPC line, accepting 0.31 mm thick flat flex cable.
The housing ships without contacts (Contacts Not Included); the mating crimp terminals are ordered separately to match the FFC or FPC thickness and wire gauge.
The 67013-010LF ships as a bare receptacle housing; the mating crimp contacts for the FFC or FPC must be ordered separately to complete the assembly.
