Amphenol RF 68175-1005 BNC Plug Kit, 50 Ohm, 2 GHz, NRND

MPN68175-1005
NRND

Amphenol RF BNC plug kit, 68175-1005, 50 Ohm, 2 GHz, 500 mating cycles, crimp/solder termination, RG-59/Belden cable group, 3-piece kit.

$9.4300Ref. price · indicative, final on quote
68175-1005 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68175-1005 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59, Belden 1426A, 1505A, 8281, 9100, 9278
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

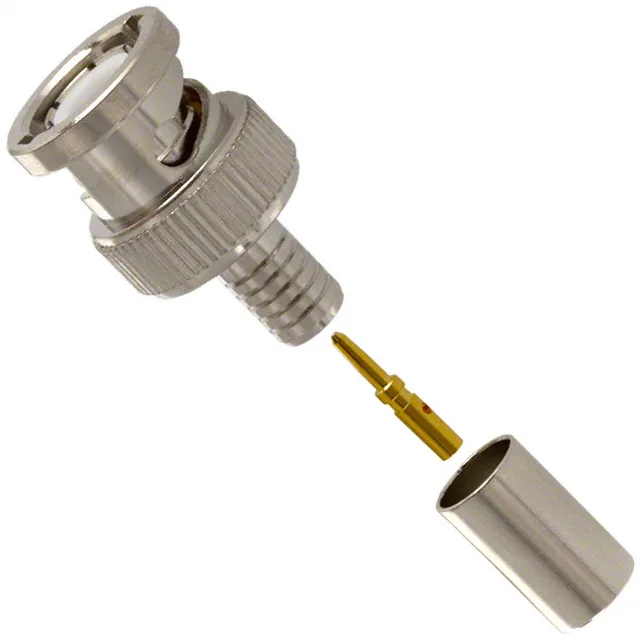

Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

BNC Plug Kit for RG-59 and Belden Cables, 50 Ohm to 2 GHz

The Amphenol RF 68175-1005 is a BNC plug kit — a male pin connector in a bayonet-lock shell, designed for free-hanging (in-line) cable termination. The kit is built for RG-59, Belden 1426A, 1505A, 8281, 9100, and 9278 cables, making it a standard choice for CCTV, video distribution, and low-frequency RF signal paths up to 2 GHz.

The centre contact can be terminated by crimp or solder — crimp is faster for production harnesses, solder gives a field-rework option. The shield termination is crimp-only, using the included ferrule to clamp the braid.

500 Mating Cycles and Bayonet Lock

The bayonet lock (quarter-turn) mates quickly and holds positively against cable strain — no threads to cross, no torque spec to hit. The single-port, 1-position design is the standard BNC interface, interchangeable with any 50 Ohm BNC jack or bulkhead receptacle.

NRND — Sourcing and Replacement Planning

The 68175-1005 carries a Not Recommended for New Design (NRND) lifecycle status. For new designs, evaluate the current Amphenol RF BNC plug range for a direct cable-group and performance match.

Frequently asked questions

Is 68175-1005 still available to purchase?

Yes, the 68175-1005 is available to source through independent distribution. The part carries an NRND (Not Recommended for New Design) status, so it is not recommended for new projects but remains obtainable for existing BOM lines.

What is the replacement for 68175-1005?

For new designs, review the current Amphenol RF BNC plug family for a kit that matches the RG-59/Belden cable group, 50 Ohm impedance, and 2 GHz frequency rating.

What cable group does 68175-1005 support?

The 68175-1005 is designed for RG-59, Belden 1426A, 1505A, 8281, 9100, and 9278 cables. These are standard 75 Ohm video coax cables (though the connector is 50 Ohm — the impedance mismatch is acceptable for short video runs or test leads).
